Dirty Dingo S10 Adjustable LS Conversion Mounts

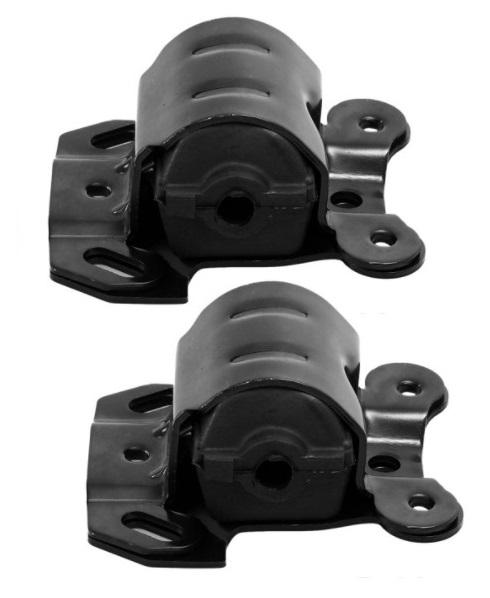

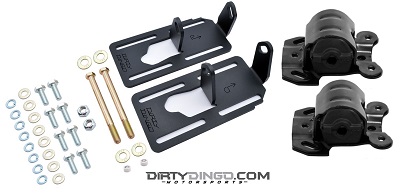

Precision CNC laser cut from .250 thick 1050 High Carbon cold rolled steel. These Patented Design LS adjustable conversion mounts are for installing the 1997-2015 Gen III/IV LS series engine into 1982-2004 2WD and 4WD Chevrolet & GMC S10 trucks and mini blazers. This is a complete kit including the clam shell frame mounts. These mounts are slotted for adjustment and offer 1 1/2 inches of adjustment for correct engine placement in the engine compartment. Precision CNC press brake folded with a large radius die to reduce stress on the bends. Kit includes all necessary grade-8 zinc coated bolts including new bolts to mount clam shell engine mounts to frame and new cross bolts.



* (Raw steel not paintedBlack texture powder coat is available for engine side.

* Sold in pairs, left and right. "D" is the Drivers side, "P" is the Passenger side.

* These mounts will clear low mount a/c but will not allow the engine to slide back, they mount against the a/c compressor bracket.

* Low mount alternators do not clear the S10 steering box.

Dirty Dingo S10 Adjustable LS Conversion Mounts
Displaying 1 to 3 (of 3 products) Result Pages:  1
 Model      Product Name   Price   Buy Now
 DD-LS-S2-2DBLZ
2WD 2 Door S10 Blazer LS Adjustable Conversion Mounts
 2WD 2 Door S10 Blazer LS Adjustable Conversion Mounts
$99.99
 DD-LS-S2

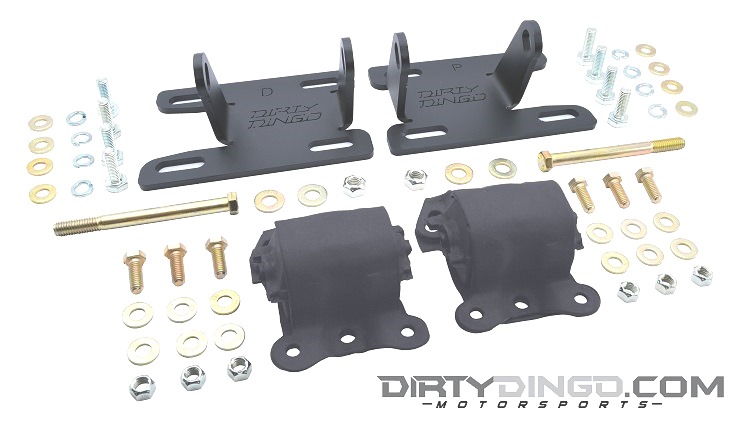

2WD LS S10 Adjustable Conversion Mounts
 2WD LS S10 Adjustable Conversion Mounts
$99.99
 DD-LS-S4

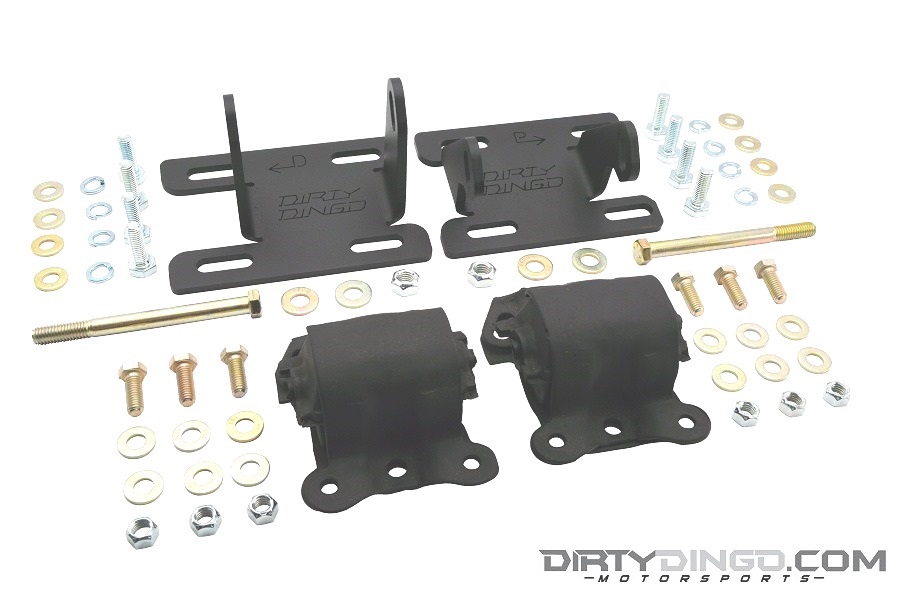

4WD LS S10 Adjustable Conversion Mounts
 4WD LS S10 Adjustable Conversion Mounts
$99.99
Displaying 1 to 3 (of 3 products) Result Pages:  1
