Dingo Double-D Billet 3/8 Aluminum LS1 Adapter Plates

Dingo Double-D Billet 3/8 Aluminum LS1 Adapter Plates
Click to enlarge
Price $69.99
Model DD-LS-DOUBLE-D-A
Manufacturer Dirty Dingo
Quantity:
  Add to Wish List

Description

Billet Aluminum Dirty Dingo Motorsports "Double-D" LS engine adapter plates are CNC machined from 1/2" thick 6061-T6 aircraft billet aluminum on a precision vertical CNC milling center. These mounts are completely machined on both sides to 3/8" thick and are designed as a true "bolt in" adapter plate for installing the 1997-2013 Gen III/IV LS series engine into 1958-72 GM cars and 2WD GM Trucks, and 1962 to 1991 Corvettes(Corvette 1958 to 1961 will require a frame stand to use a GM three bolt mount).  These conversion plates will place your LS engine in the correct position when swapping from a small or big block Chevrolet engine to a LS series engine and have four different motor mount placement positions. The first set of holes position the LS engine in the original bell housing position, then 11/16" forward, then 1  11/16" forward, and the last set position the LS engine 2 1/4 inches forward from the original bell housing position. These are the most common engine positions for the major header manufacturers. No other conversion plates on the market are designed like these. Includes left and right adapter plates and all necessary grade-8 zinc coated hardware.



* These mounts are sold in pairs. "D" is Drivers side, "P" is Passenger side. Arrows point to the front.

* These mounts will not clear low mount a/c or low mount GTO rear alternator brace, but they will clear Camaro low mount alternators when removing the rear brace.

* Will not fit on 1967-72 4X4 Chevrolet GMC trucks. These trucks require a complete front cross member. Click here.



Images

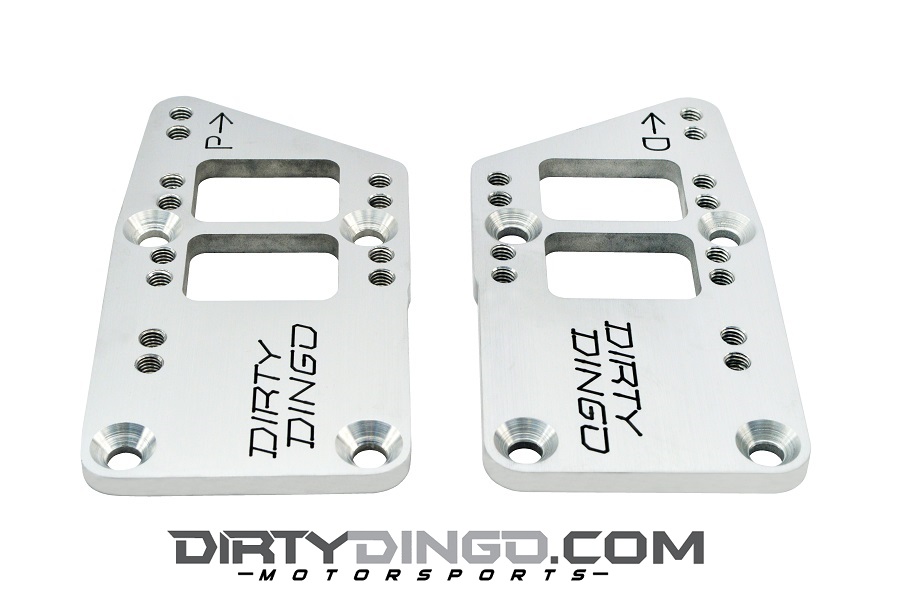

Dingo Double-D Billet 3/8 Aluminum LS1 Adapter Plates
Click to enlarge

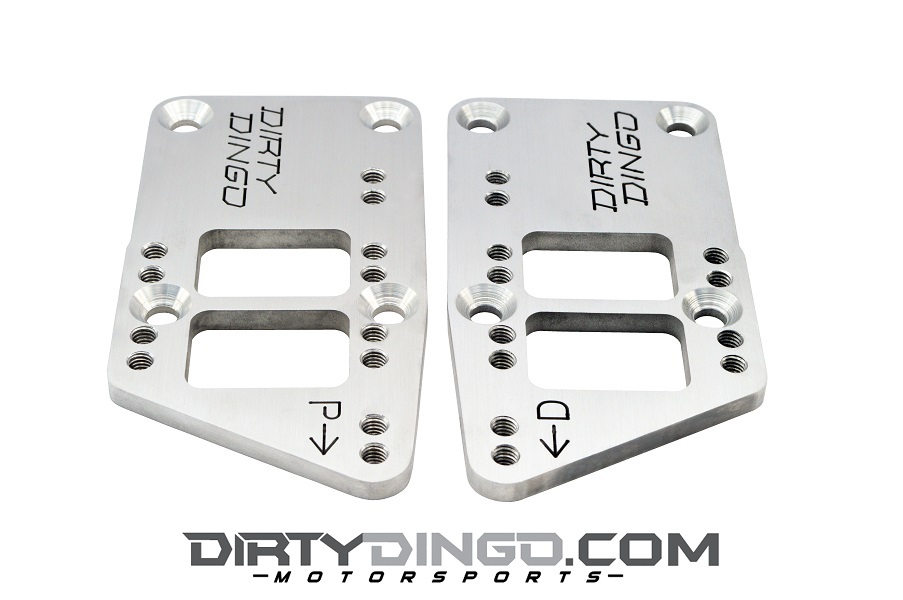

Dingo Double-D Billet 3/8 Aluminum LS1 Adapter Plates
Click to enlarge

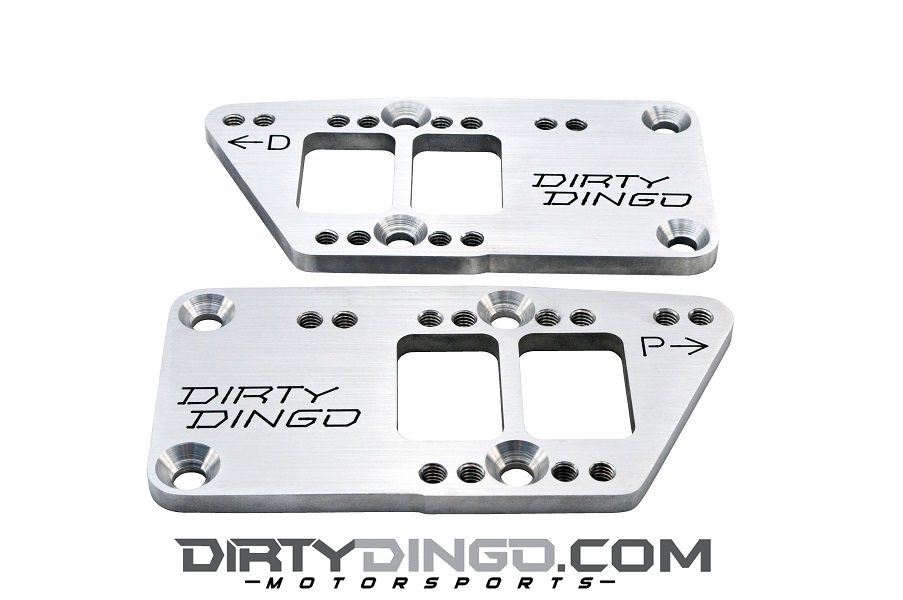

Dingo Double-D Billet 3/8 Aluminum LS1 Adapter Plates
Click to enlarge

Mfg Info

Manufacturer Info
Other products

Reviews

by jose mendoza Date Added: Saturday 16 March, 2013
Amazing fit and quality. Will never use anything else.

Rating: 5 of 5 Stars [5 of 5 Stars]
