LS Truck Billet Alternator Power Steering Bracket

LS Truck Billet Alternator Power Steering Bracket
Click to enlarge
Price $249.99
Model DD-LS-ALT-PS
Manufacturer Dirty Dingo
Quantity:
  Add to Wish List

Description

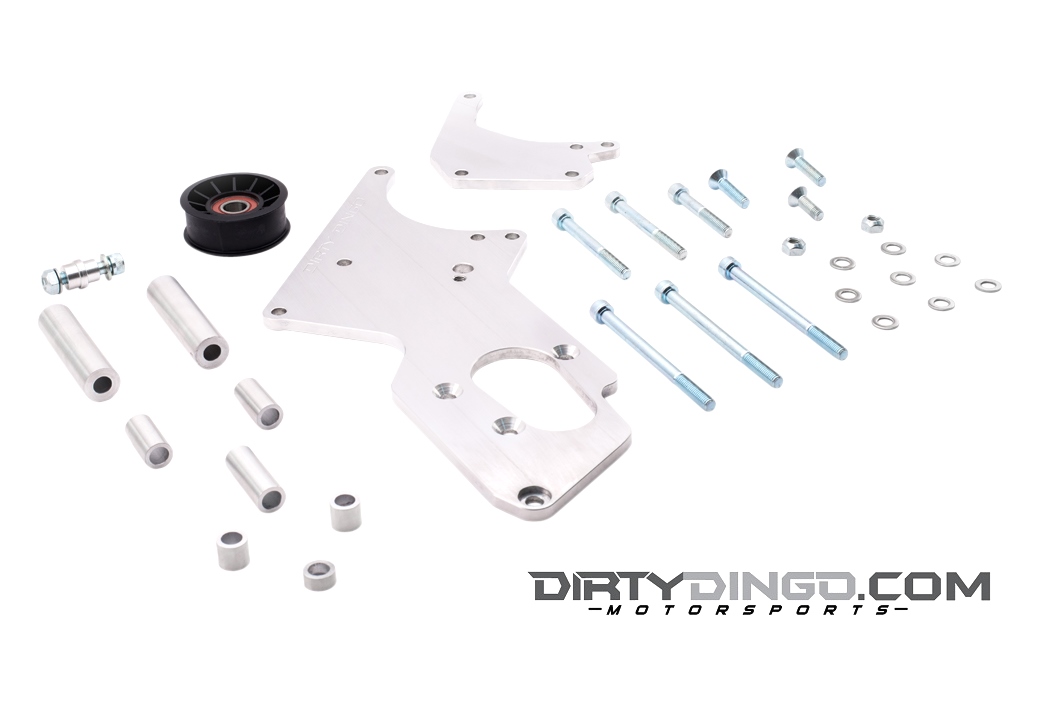

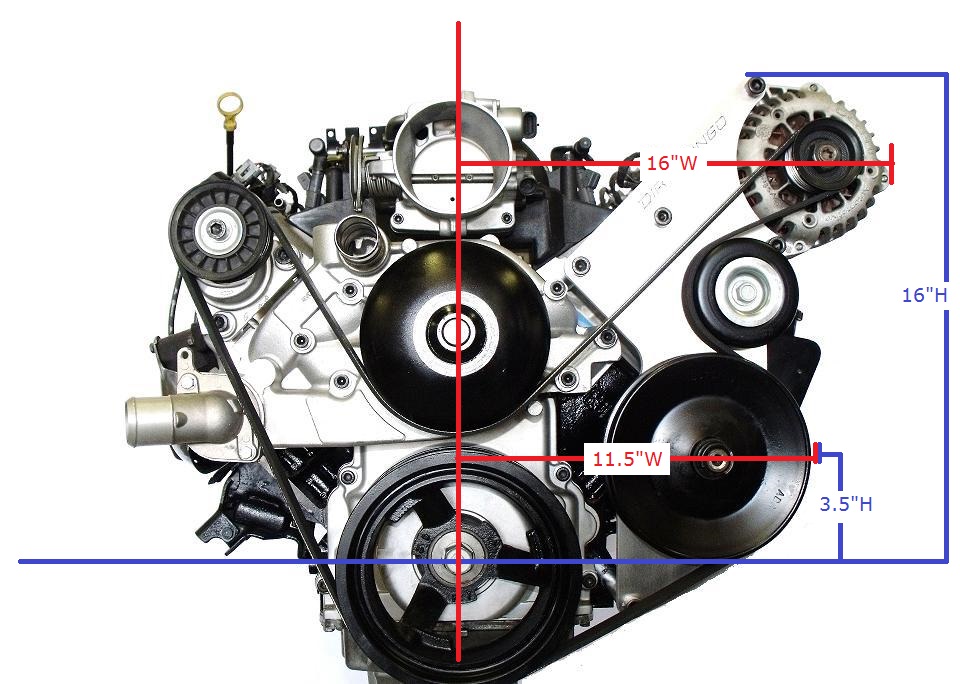

Dirty Dingo designed billet aluminum alternator/power steering bracket for your 1997-2015 LS engine with Truck accessories. CNC machined from 1/2" thick 6061-T6 aircraft billet aluminum on a precision vertical CNC milling center. This bracket is completely CNC machined on both sides. This bracket will relocate and lower your alternator while retaining the stock LS Truck power steering pump and fits all LS alternators. No need to buy a different style power steering pump, reservoir, pulley, and idler pulley. This bracket positions the top of the alternator 1/4 inch below the top of an LS1 car intake manifold. Machined from 3/8 thick 6061-T6 aircraft billet aluminum. If you are using the LS1 Truck style accessories and having hood clearance issues- this is the solution. Will work with Vortec truck water pump, or 1998-02 Camaro water pumps with water pump spacers. Includes two billet aluminum brackets, 6061-T6 billet aluminum CNC lathe cut spacers, grade 8 zinc coated allen bolts, and stainless steel washers.

* Kit includes new pulley kit.

* Will not clear tall sheet metal valve covers.

* Designed to fit all LS alternators- 1998-2002 Camaro, 2000-2013 Truck LS Vortec truck large and small case, Corvette, CTSV, and 2010 up Camaro Alternators.

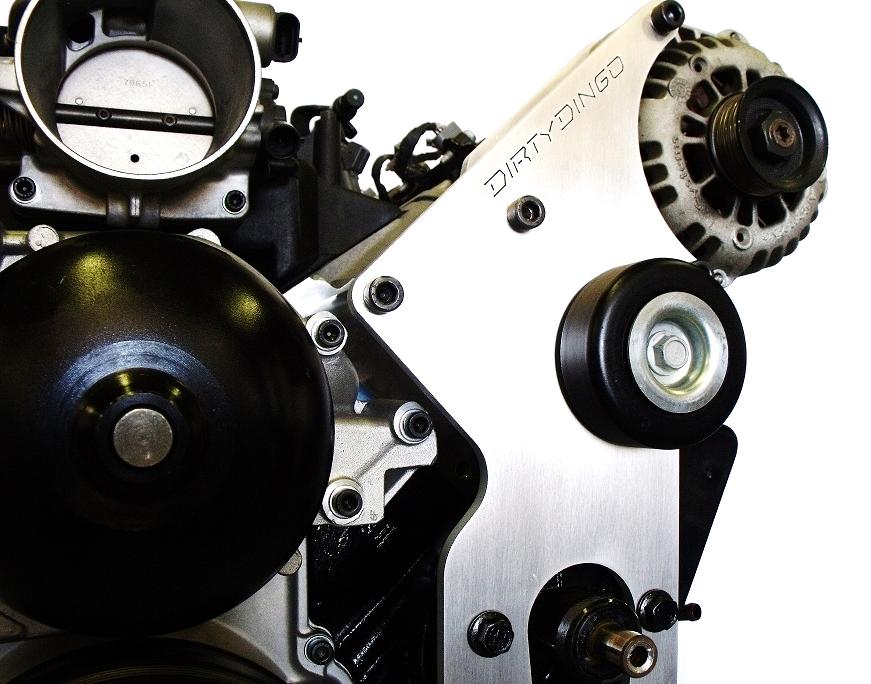

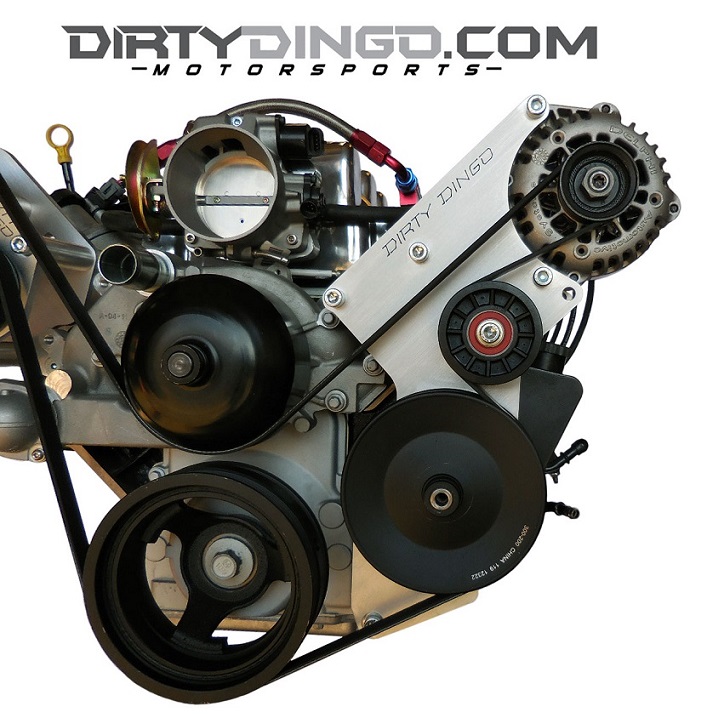

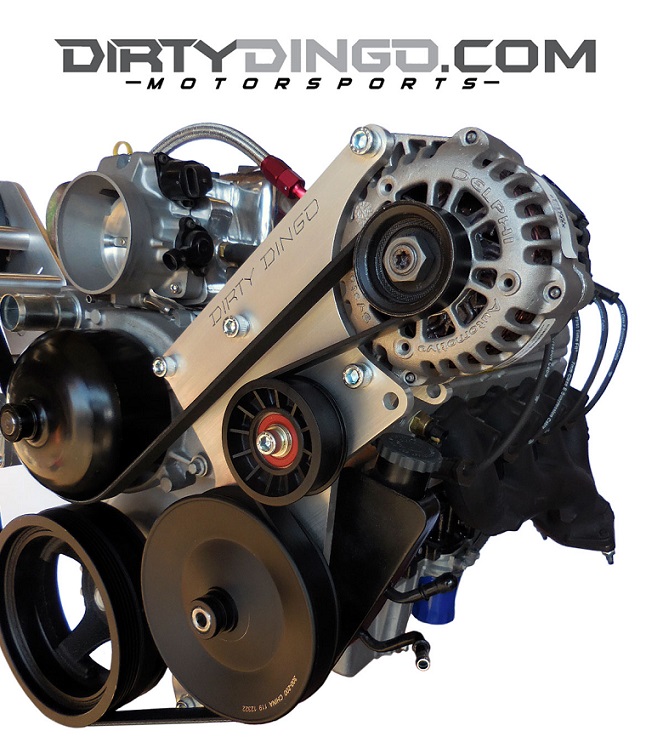

Images

LS Truck Billet Alternator Power Steering Bracket
Click to enlarge
LS Truck Billet Alternator Power Steering Bracket
Click to enlarge
LS Truck Billet Alternator Power Steering Bracket
Click to enlarge
LS Truck Billet Alternator Power Steering Bracket
Click to enlarge
LS Truck Billet Alternator Power Steering Bracket
Click to enlarge
