LS R4 A/C Bracket Assembly

LS R4 A/C Bracket Assembly
Click to enlarge
Price $249.99
Model DD-LS-R4-AC-CM
Manufacturer Dirty Dingo
Quantity:
  Add to Wish List

Description

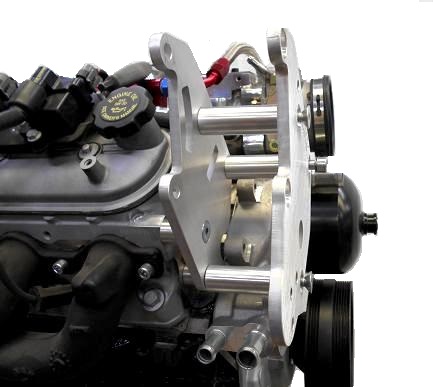

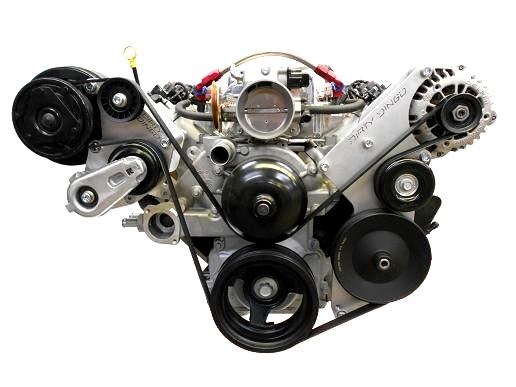

Dirty Dingo billet aluminum air conditioning bracket for mounting the GM R4 A/C compressor on the top passenger side of 1997-2013 LS engines.  Machined from 3/8 thick 6061-T6 aircraft billet aluminum. Comes complete with precision CNC lathe cut 6061-T6 1 inch thick diameter billet aluminum spacers, grade 8 socket head zinc coated allen bolts, and stainless steel washers.  Includes new Gates idler pulley and Gates monster spring loaded belt tensioner. Places the A/C compressor in line with the factory serpentine belt drive system. This kit is designed to fit LS 1998-2002 CAmaro and GTO accessories.

 * A/C compressor and belt not included.

* Designed to be used with V8 style R4 compressor.

* Does not clear factory EGR valve on passenger head, must be relocated.







Images

LS R4 A/C Bracket Assembly
Click to enlarge
LS R4 A/C Bracket Assembly
Click to enlarge
LS R4 A/C Bracket Assembly
Click to enlarge
LS R4 A/C Bracket Assembly
Click to enlarge
LS R4 A/C Bracket Assembly
Click to enlarge
LS R4 A/C Bracket Assembly
Click to enlarge

Mfg Info

Manufacturer Info
Other products

Extra Info

Comments
There are currently no product reviews
Write a review on this product!


Extra Info

Notify me of updates to LS R4 A/C Bracket Assembly
Tell someone you know about this product.
Customers who bought this product also purchased

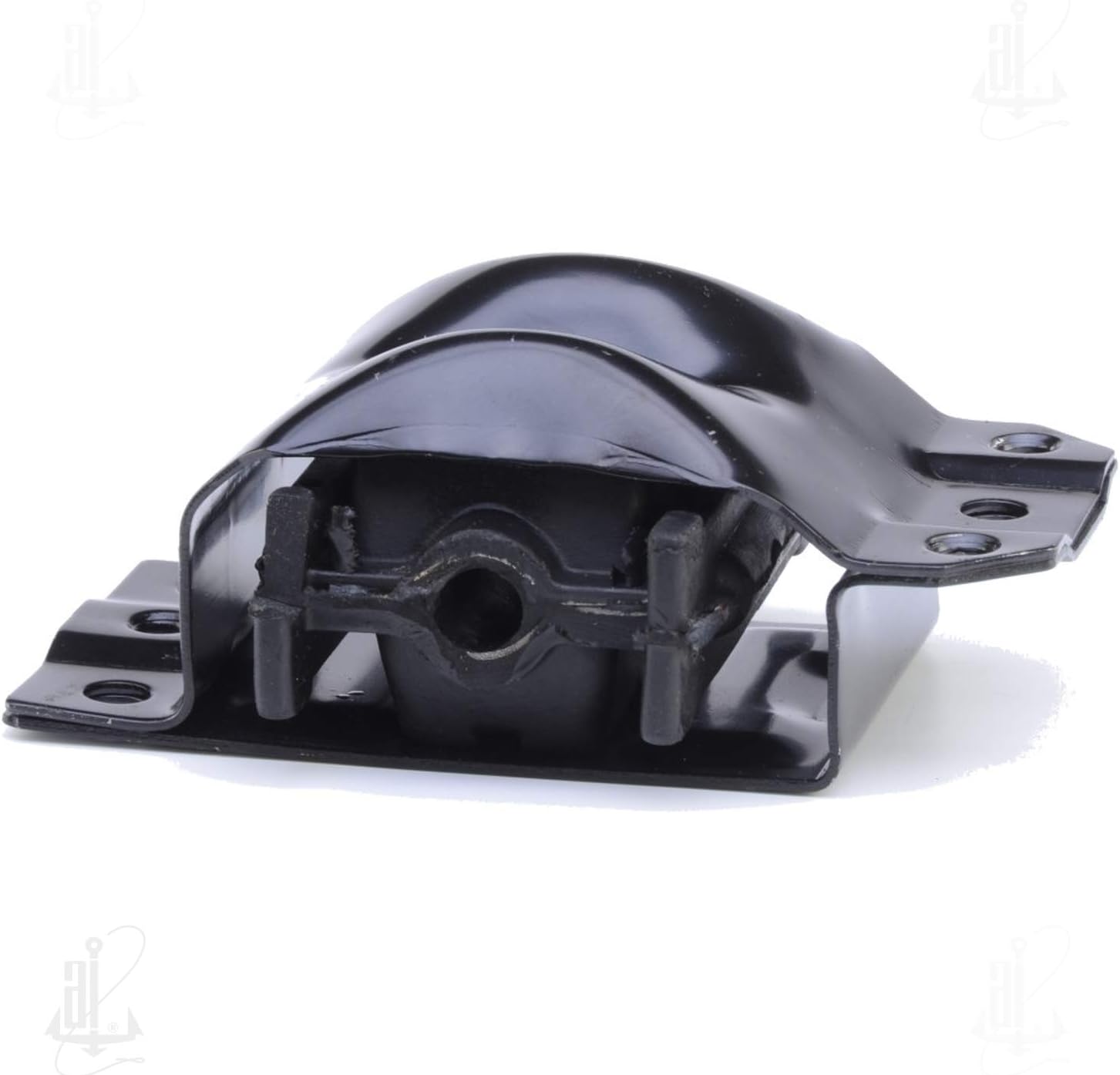

Chevrolet GMC Truck Blazer Suburban 88-99 4WD LS Engine Mounts
