Dingo Double-D Billet 3/8 Aluminum LT Adapter Plates

Dingo Double-D Billet 3/8 Aluminum LT Adapter Plates
Click to enlarge
Price $69.99
Model DD-LT-DOUBLE-D-A
Manufacturer Dirty Dingo
Quantity:
  Add to Wish List

Description

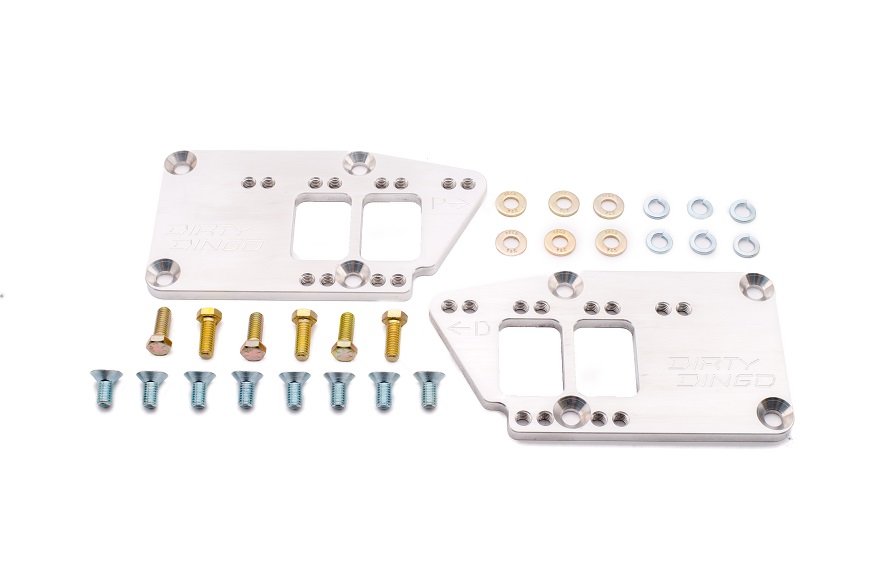

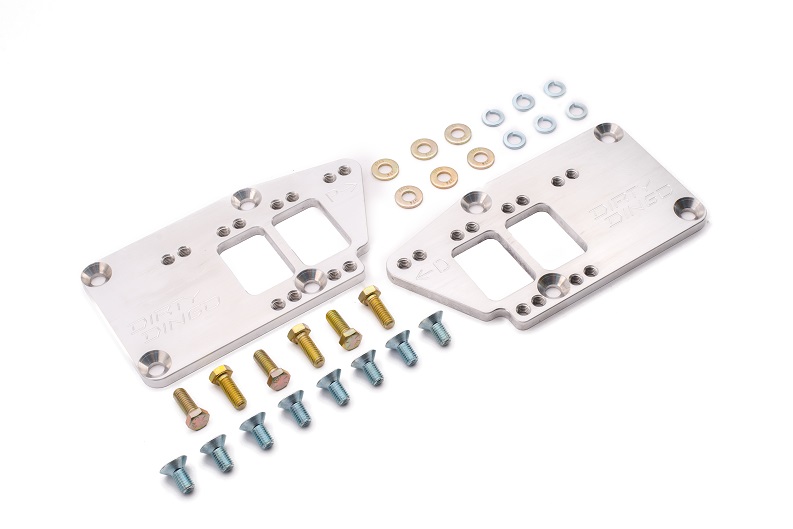

Billet Aluminum Dirty Dingo Motorsports "Double-D" LT engine adapter plates are CNC machined from 6061-T6 billet aluminum and are designed as a true "bolt in" adapter plate for installing the 2014-up Gen V LT series engine into 1958-72 GM cars and 2WD GM Trucks, and up to 1991 Corvettes. These conversion plates will place your LT engine in the correct position when swapping from a small or big block Chevrolet engine to a LT series engine and have four different motor mount placement positions. The first set of holes position the LT engine in the original bell housing position, then 11/16" forward, then 1  11/16" forward, and the last set position the LS engine 2 1/4 inches forward from the original bell housing position. These are the most common engine positions for the major header manufacturers. No other conversion plates on the market are designed like these. Includes left and right adapter plates and all necessary grade-8 zinc coated hardware.



* These mounts are sold in pairs. "D" is Drivers side, "P" is Passenger side. Arrows point to the front.

​* Will not clear driver's side vacuum pump on truck engines.

* Will not fit on 1967-72 4X4 Chevrolet GMC trucks. These trucks require a complete front cross member DD-LT-CM1.
