Dirty Dingo Adjustable Square-Body Transmission Crossmember
This is an oversized item. Additional shipping charges will apply.
The Dirty Dingo adjustable transmission crossmember is designed for 2WD 1963–1987 Chevrolet and GMC C10 and C20 trucks, Blazers, and Suburbans.
Some square-body SUVs and trucks were built through 1991 and renamed the R/V Series. This crossmember will also fit R10 and R20 models.

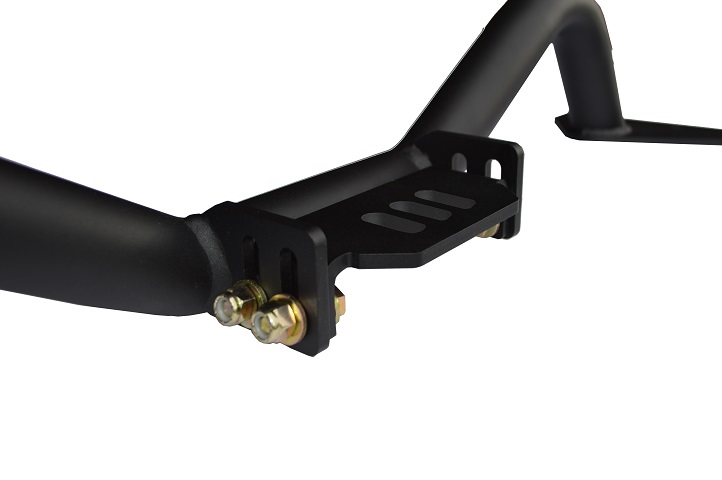

In most applications, the crossmember bolts into the factory transmission mounting holes. No new holes are needed. Its adjustable design works with many popular transmissions, including:
-
Powerglide, TH350, TH400, 700R4, 4L60E, 4L65E, 4L70E, 4L80E, 6L80E, 6L90E, 8L80E, 8L90E, 10L80E, 10L90E
The crossmember works with lifted or lowered trucks. It keeps the factory transmission angle to help maintain proper driveshaft alignment.

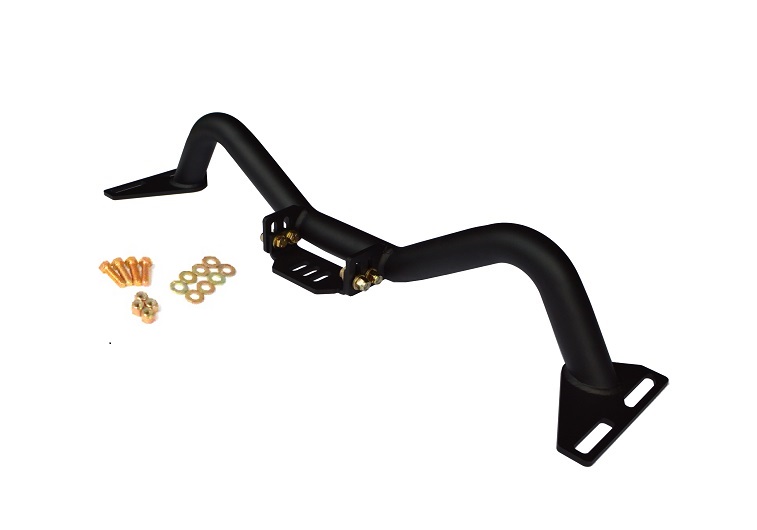

It is made from CNC-formed 1 3/4-inch-diameter tubing with strong 1/4-inch steel mounting plates. The design provides clearance for long-tube headers and exhaust systems up to 4 inches in diameter.

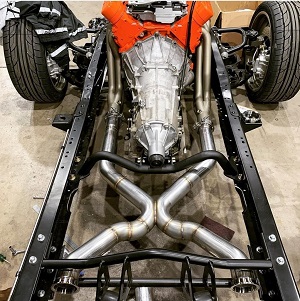

The crossmember mounts above the frame rails, providing added ground clearance for very low trucks. Each crossmember is welded and cooled in a custom fixture for an accurate fit.
Grade 8 bolts, washers, and locking nuts are included.
Important Fitment Information
-
Sold as plain, raw steel.
-
Black textured powder coating is available.
-
The transmission mount shown in the photos is sold separately.
-
Works with Anchor 2268 and 2360 transmission mounts.
-
Works with Energy Suspension 3.1108 transmission mounts.
-
Will not fit 1960–1962 C10 trucks because those frames are narrower.
-
Newer 4L80E transmissions may require GM mount 23134733.
-
6L80E and 6L90E transmissions require Anchor 2392 or Energy Suspension 3.1158 mounts.
-
Transmissions using the wider Anchor 2638 mount, such as the NV4500, require an adapter plate to use an older-style Anchor 2268 or 2811 mount.
|
