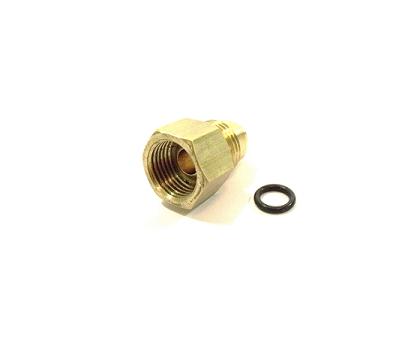

This custom CNC-machined brass adapter lets you connect a late-model LS power steering pump to 1979 and older GM-style 3/8-inch tubing eith inverted flare power steering line s. The thread size is 5/8-18.

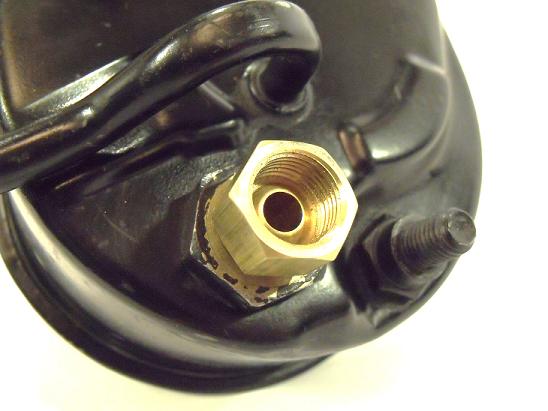

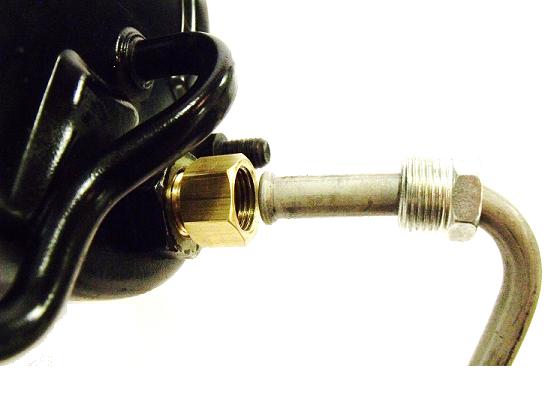

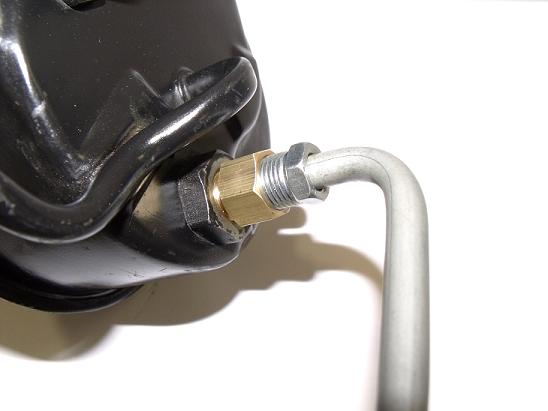

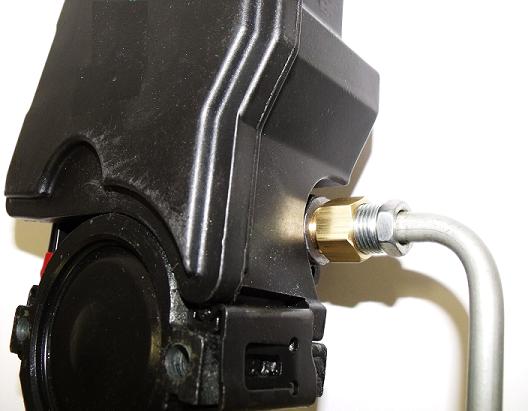

The adapter threads directly into the high-pressure flow valve on 1980 and newer GM power steering pumps. This allows you to keep and use older factory-style inverted flare lines with your LS power steering setup.
A Viton O-ring is included for a secure seal.
Fits Gen III and Gen IV LS power steering pumps, including:
-
Corvette
-
Camaro
-
GTO
-
CTS-V
-
Vortec truck applications
A simple solution for connecting older GM power steering lines to newer LS power steering pumps.
|
|
Pressure |
Return |
|
LS Power Steering Pump |
M16x1.5 O-Ring |
Hose Clamp |
|
Before 1980 Gearbox (SAE) |
5/8"-18 |
11/16"-18 |
|
After 1980 Gearbox (Metric O-Ring) |
M16x1.5 O-Ring |
M18x1.5 O-Ring |

If your O-ring is old and hard, use the following part number for replacements: GM 26001594
DO NOT use any O-ring you find at the parts store. The Metric O-Ring fitting requires an O-Ring made of Viton so the power steering fluid doesn't destroy them.
O-Ring Technical Info: 903 (7.65mm ID x 1.63mm C/S or .301 ID x .064 C/S) Viton
Make sure there isn't an O-ring already in the power steering pump from the old line!
|
