LT Billet Alternator Type 2 Power Steering with Sanden 508 AC

LT Billet Alternator Type 2 Power Steering with Sanden 508 AC
Click to enlarge
Price $529.99
Model DD-LT-ALT-PS-2-SANDEN-TR
Manufacturer Dirty Dingo
Quantity:
  Add to Wish List

Available Options:
LT Water Pump Adapters:
Billet Power Steering Pulley:

Description

Dirty Dingo designed billet aluminum alternator/power steering and Sanden 508 brackets for your Gen V engine with Truck spacing balancer. CNC machined from 1/2" thick 6061-T6 aircraft billet aluminum on a precision vertical CNC milling center. This bracket is completely machined on both sides to 3/8" thick.  Designed to be used with Dirty Dingo LT water pump adapters and used with a Gen IV LS water pump. This bracket uses a type 2 power steering pump from a 1998-2002 LS1 Camaro or a 1997-2004 CorvetteMust use an external power steering pump reservoir.  Bracket is double drilled to mount all Gen III and Gen IV large and small case alternators. This bracket is designed to be used with a small diameter 5” power steering pulley. Idler pulleys, tensioner, and grade 8 zinc coated allen bolts included. Billet spacers are cut on a CNC lathe for precision. This kit does not include the small billet power steering pulley. Total width of brackets are 34.75". From the center of the engine the alternator is 18 1/4" wide, the A/C is 16 1/2" wide.



* Will not work with dry sump engines.

* Designed to be used with Sanden type SD7H15 4711, 4665, and 6669 508 A/C compressors.

* Must be used with DD-LT-WPA Dirty Dingo LT water pump adapters and a Gen IV 2008 LS3 6.2L Corvette water pump GM part number 89018052.

* Designed to fit all LS alternators- 1998-2002 Camaro, 2000-2013 Truck LS Vortec truck large and small case, 2010-2015 Camaro, and LT truck alternators.

* Billet small diameter power steering pulley Camaro pump- DD-LS-SPS-B-CM, Corvette pump- DD-LS-SPS-B-CV.

* Can be used with a 7, or 8 rib clutch Sanden 508 compressor.

?* Will not clear factory truck vacuum pump. Hydroboost or electric vacuum pump required.

* Designed to fit using Gen V Truck spacing harmonic balancer GM part number 12620312.

* Will need 1997-2004 Corvette Reservoir GM part # 26046502

* Will need 1997-2004 Corvette Reservoir Bracket GM part # 12555222

* Will need 1997-2004 Corvette Reservoir cap GM part # 10317982



Images

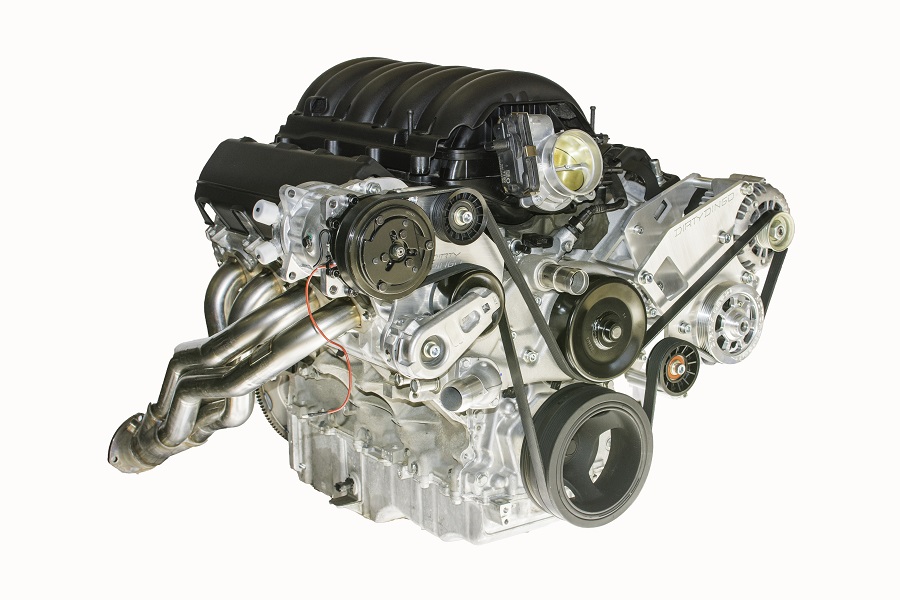

LT Billet Alternator Type 2 Power Steering with Sanden 508 AC
Click to enlarge

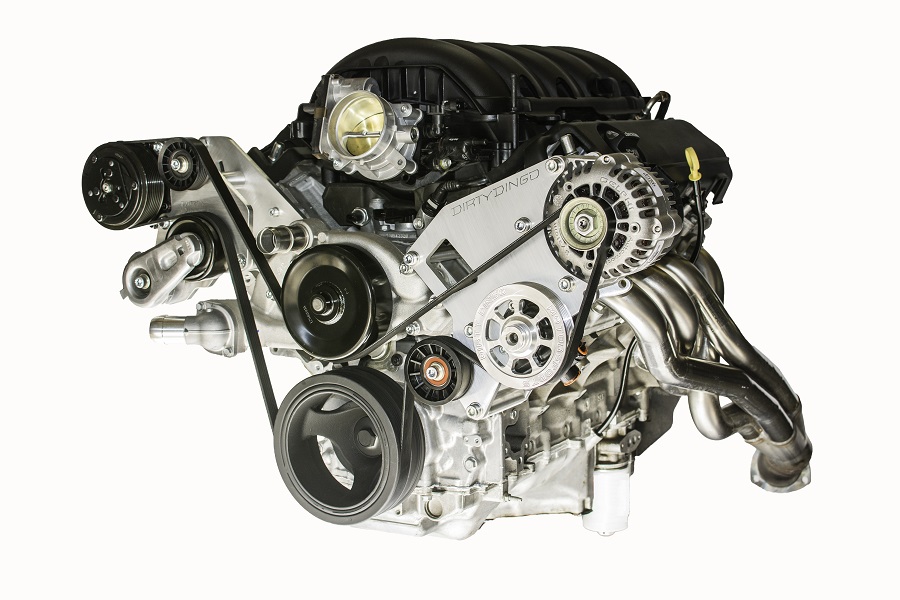

LT Billet Alternator Type 2 Power Steering with Sanden 508 AC
Click to enlarge
LT Billet Alternator Type 2 Power Steering with Sanden 508 AC
Click to enlarge

Mfg Info

Manufacturer Info
Other products

Extra Info

Comments
There are currently no product reviews
Write a review on this product!


Extra Info

Notify me of updates to LT Billet Alternator Type 2 Power Steering with Sanden 508 AC
Tell someone you know about this product.

Shipping

This is a heavy item and its weight is 16.00 lb(s)
