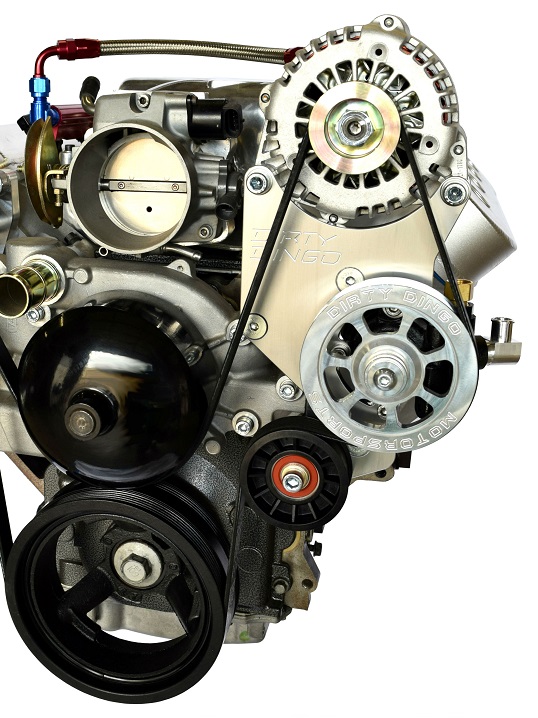

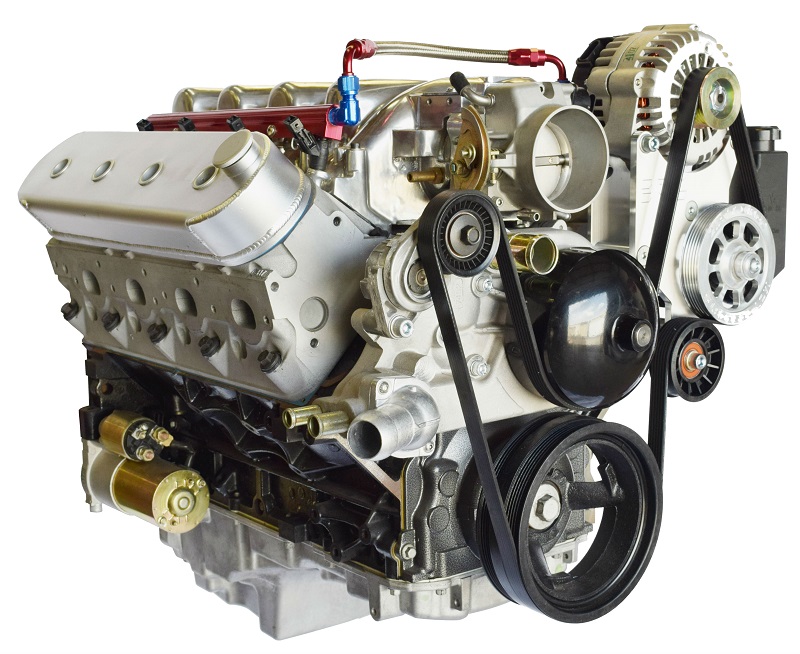

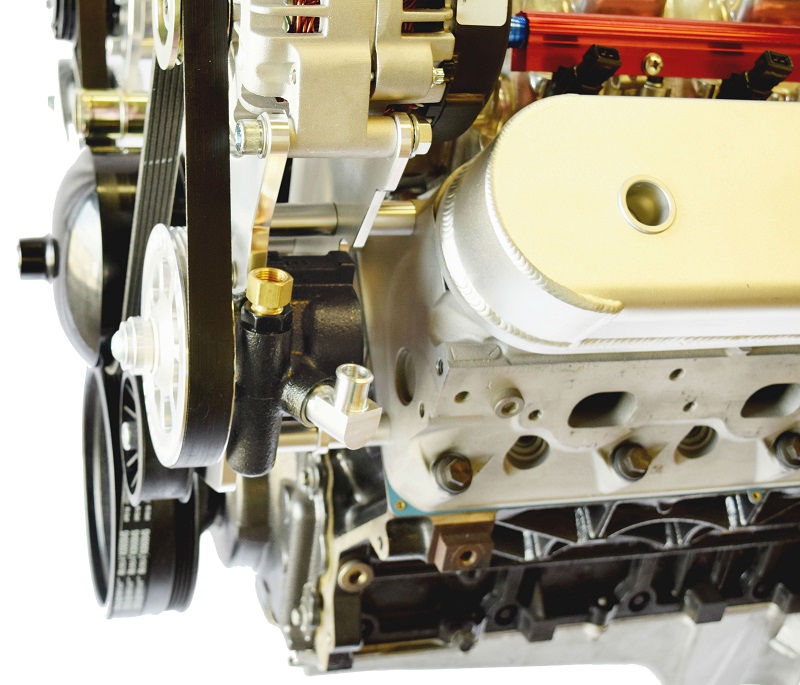

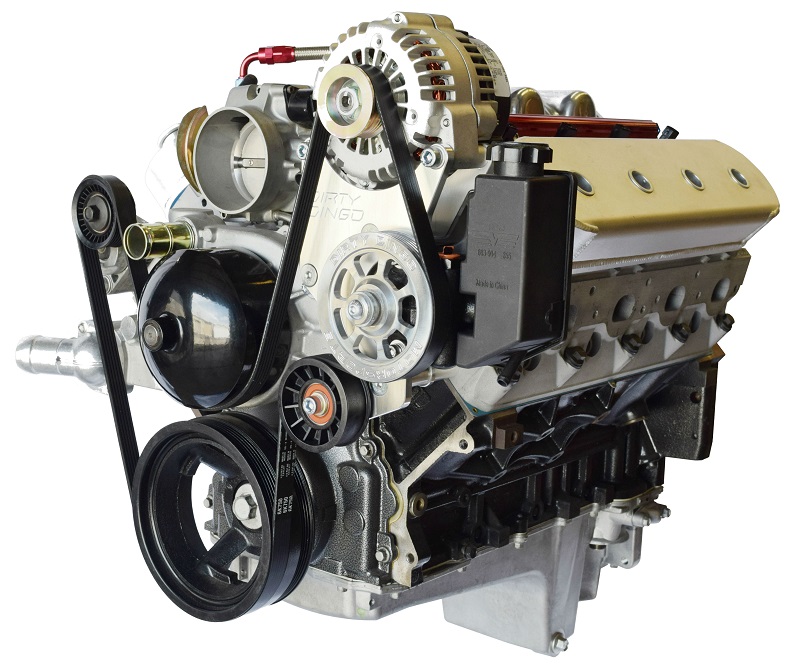

Street Rod LS Alternator and Type II Power Steering Bracket – Truck Spacing

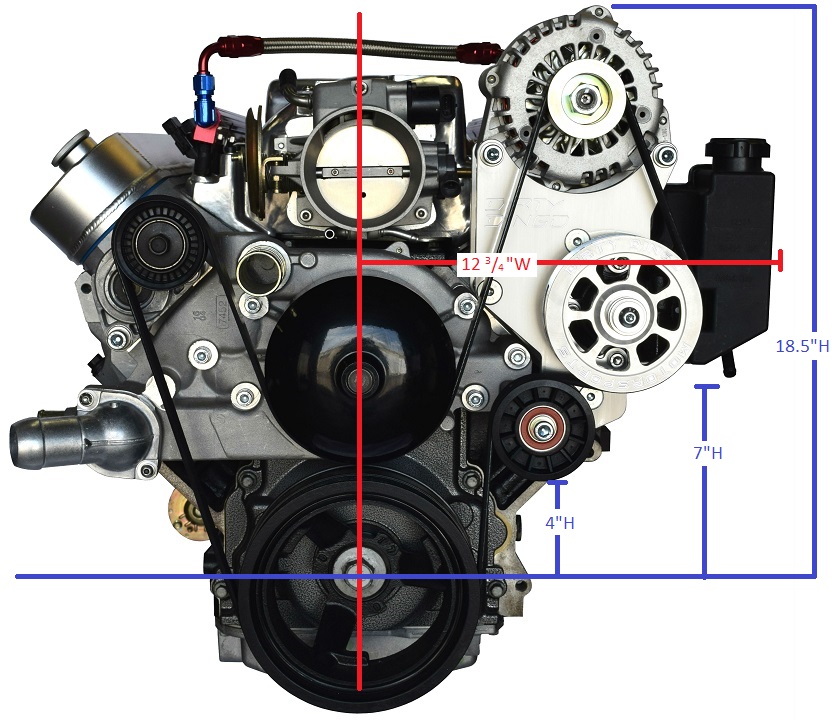

This bracket fits 1997–2013 LS engines with Vortec truck or 2010-up Camaro accessory spacing. It mounts the alternator and a 1998–2002 Camaro Type II power steering pump close to the engine.

Precision CNC machined from ½-inch-thick 6061-T6 aircraft-grade billet aluminum to a finished thickness of 3/8ths inch, the bracket fits close to the stock throttle body. It does not clear electronic throttle bodies that extend toward the driver’s side.

Works with all water pumps that use truck accessory spacing.

Kit Includes:

• Precision CNC-machined 6061-T6 billet aluminum spacers

• Grade 8 zinc-coated Allen bolts

• Stainless steel washers

• Idler pulley kit

Alternator Fitment:

• 1998–2002 Camaro, Firebird, and GTO

• 2000–2013 LS Vortec truck, large and small case

• 2010–2015 Camaro

Power Steering Requirements:

• Uses a 1998–2002 Camaro power steering pump.

• Requires a small-diameter billet Camaro power steering pulley.

• Can use an aftermarket pump reservoir, or a remote reservoir with a billet return fitting.

View Installation Instructions
