Dirty Dingo Datsun Z and Nissan 280ZX LS Swap Mount Kit
This complete bolt-in engine mount kit is designed to install a GM Gen III or Gen IV LS engine into the following non-turbo vehicles:
-
1970–1973 Datsun 240Z
-
1974 Datsun 260Z
-
1975–1978 Datsun 280Z
-
1979–1983 Datsun/Nissan 280ZX
The mounts fit the factory front crossmember and use the original engine mounting pads.

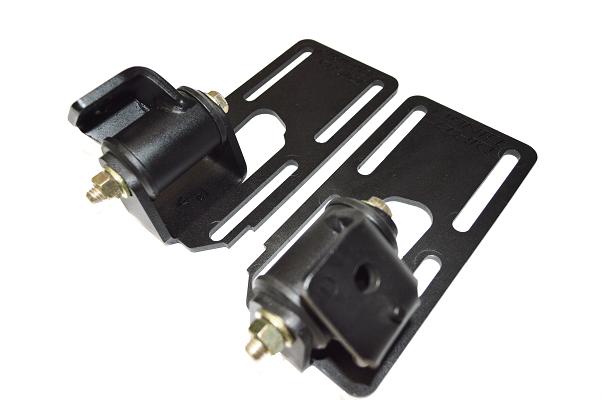

Each mount is precision CNC laser-cut from strong 1/4-inch 1050 high-carbon, cold-rolled steel. The slotted design allows the engine position to be adjusted for better fitment inside the engine bay.
The engine can be moved up to 2 1/2 inches forward or 1/2 inch rearward from the original bellhousing position. Once the hardware is properly tightened, the mounts hold the engine securely, even in high-horsepower applications.
Each mount is formed on a CNC press brake using a large-radius die. This helps reduce stress at the bends and adds strength.

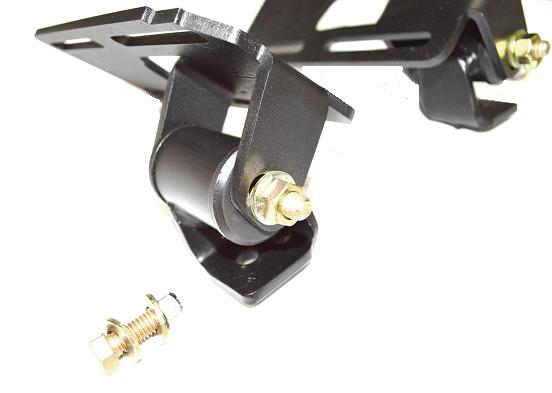

The mounts work with factory-style rubber clamshell mounts and support many manual and automatic transmissions, including:
-
Powerglide, TH350, TH400, TH700R4, 4L60E, 4L65E, 4L70E, 4L80E

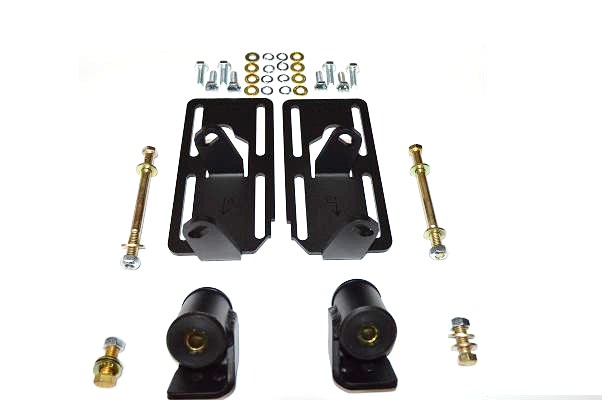

Grade 8 zinc-coated hardware and new cross bolts are included.
Important Fitment Information
-
Mounts are sold as raw, unpainted steel.
-
Black textured powder coating is available.
-
An aftermarket oil pan may be required.
-
These mounts will not fit Dart aftermarket engine blocks.
-
Designed for non-turbo models only.
-
Sold as a driver-side and passenger-side pair.
-
The “D” mount installs on the driver side.
-
The “P” mount installs on the passenger side.
-

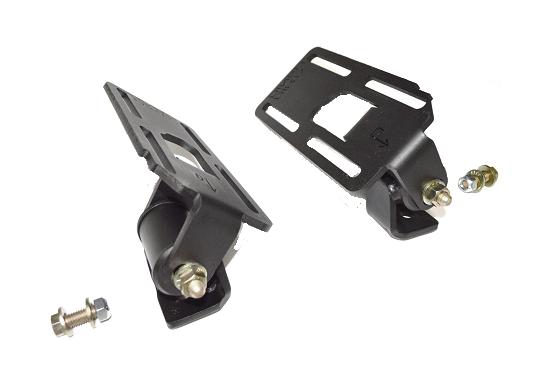

The arrows must point toward the front of the vehicle.
-
These mounts will clear a low-mounted A/C compressor with LS truck accessory spacing. However, the engine must be placed 2 1/2 inches forward because the mount contacts the A/C compressor bracket.
-
These mounts will not work with low-mounted Corvette, Camaro, or GTO A/C compressors.
-
A 1998–2002 Camaro low-mounted alternator may fit, but engine adjustment will be limited.
|
