LS Alternator Only Bracket Narrow

LS Alternator Only Bracket Narrow
Click to enlarge
Price $169.99
Model DD-LS-ALT-N-CM
Manufacturer Dirty Dingo
Quantity:
  Add to Wish List

Description

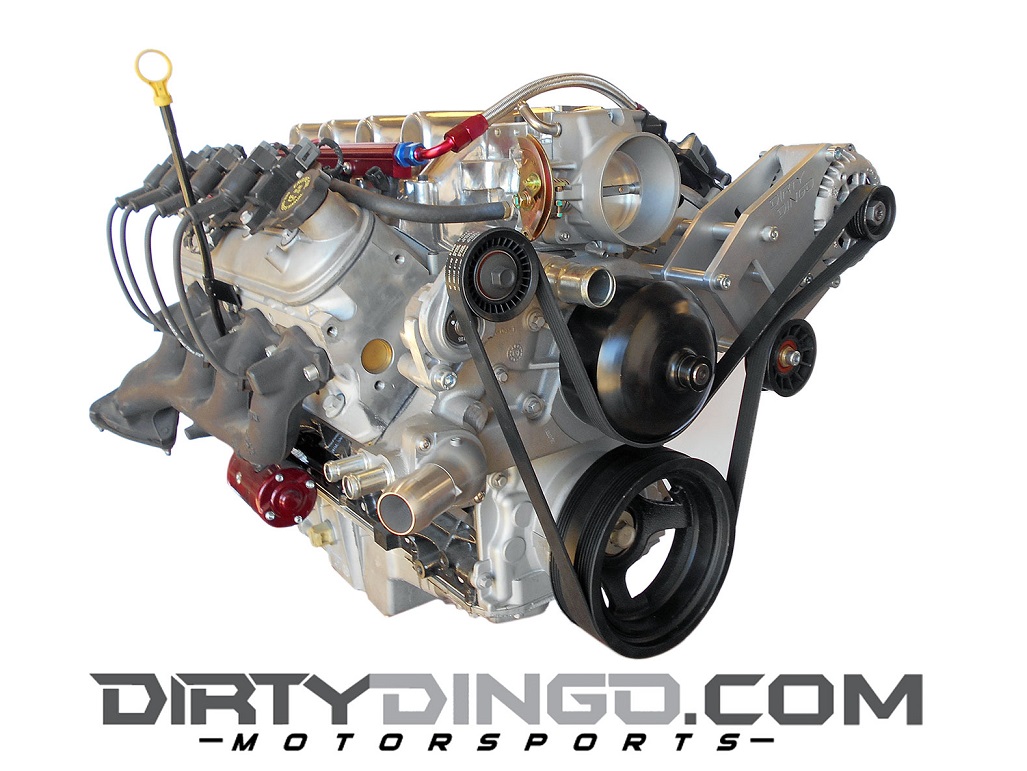

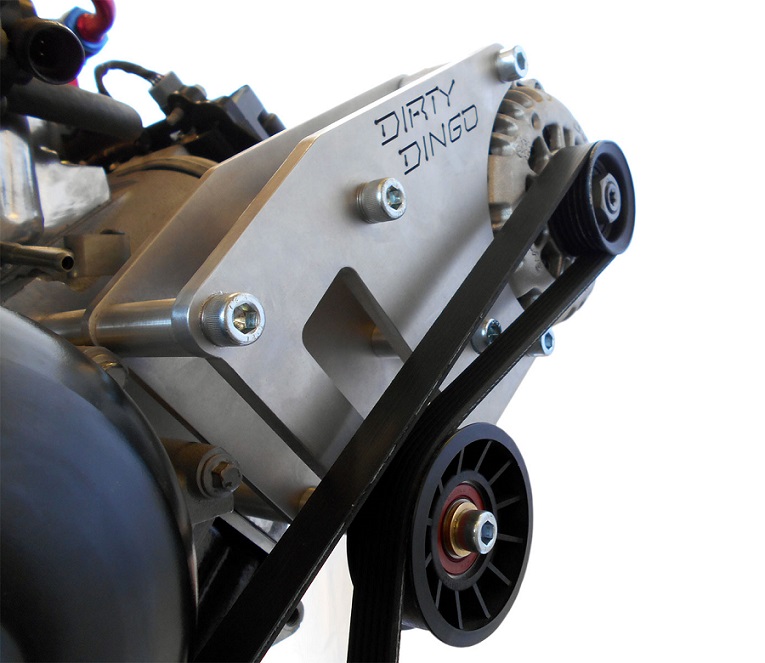

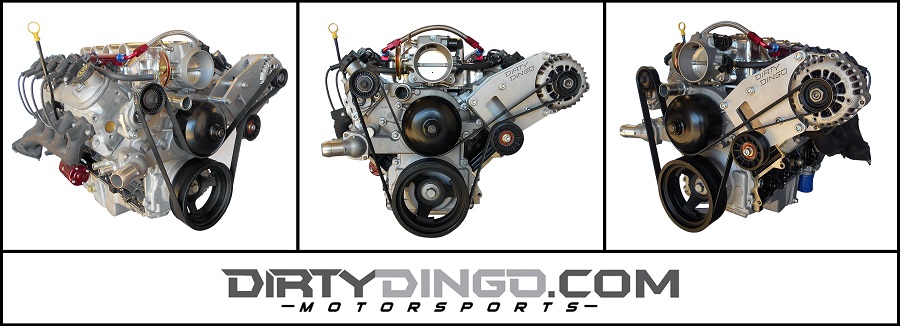

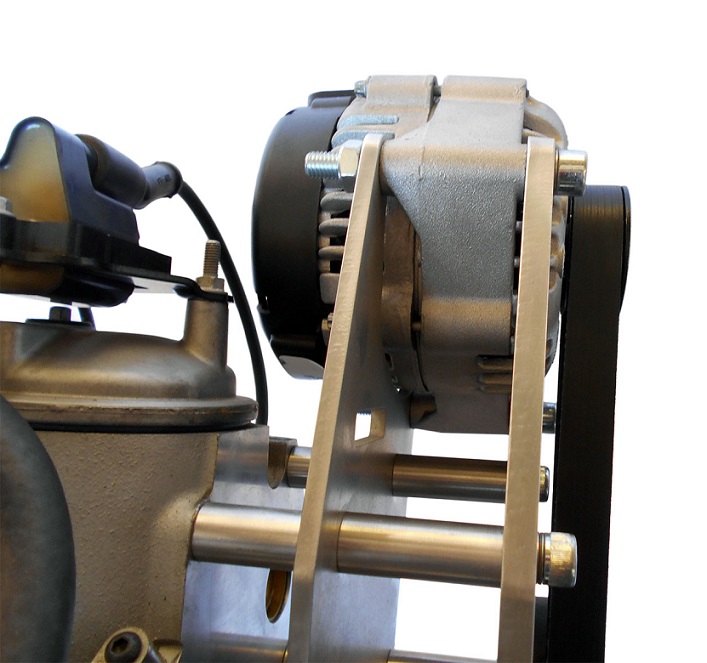

Billet aluminum alternator only bracket for 1997-2013 LS 1998-2002 Camaro-GTO accessory spacing. This bracket is designed to fit large or small case Vortec truck or 1998-02 Camaro alternators. Machined from 3/8 think 6061-T6 aircraft billet aluminum. Places the alternator on the driver’s side 1 1/2 inches below the top of an LS1 intake manifold. Designed to fit very close to the stock valve covers, will not clear tall sheet metal valve covers. This bracket is for only the alternator, non power steering applications. Will fit using truck water pumps or 1998-02 Camaro water pumps with water pump spacers. Kit is complete with all 6061-T6 billet aluminum CNC lathe machined spacers, grade 8 allen zinc coated bolts, and stainless washers. Includes idler pulley kit.

* Designed to fit LS alternators from- 1998-2002 Camaro, Firebird, GTO, 2000-2013 LS Vortec Truck large and small case, and 2010-15 Camaro Alternators.

Images

LS Alternator Only Bracket Narrow
Click to enlarge
LS Alternator Only Bracket Narrow
Click to enlarge
LS Alternator Only Bracket Narrow
Click to enlarge
LS Alternator Only Bracket Narrow
Click to enlarge
LS Alternator Only Bracket Narrow
Click to enlarge
LS Alternator Only Bracket Narrow
Click to enlarge

Mfg Info

Manufacturer Info
Other products

Extra Info

Comments
There are currently no product reviews
Write a review on this product!
