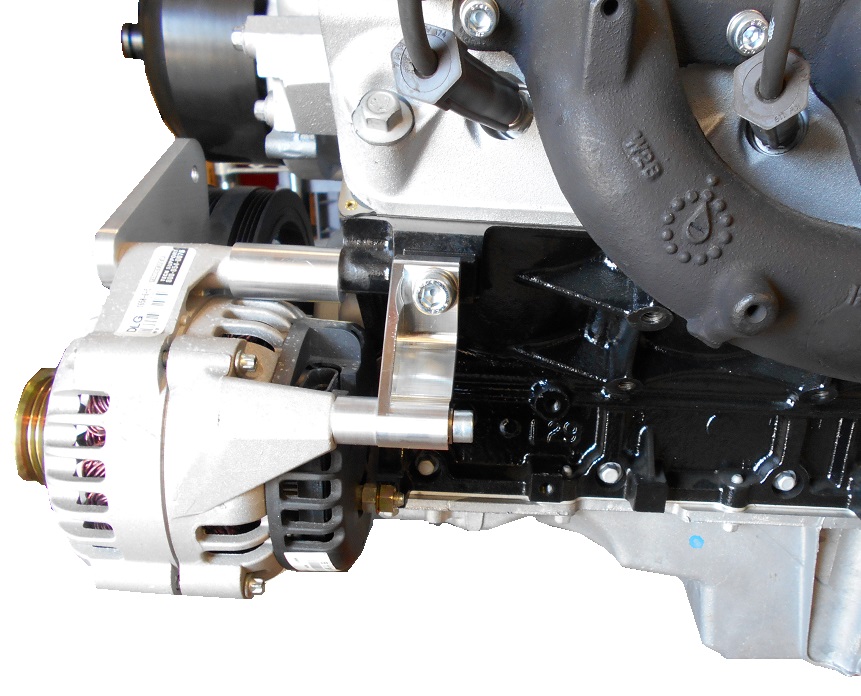

LS Camaro Style Billet Power Steering Low Mount Alt Brackets

LS Camaro Style Billet Power Steering Low Mount Alt Brackets
Click to enlarge
Price $144.99
Model DD-LS1-ALT-LM-PS-CM
Manufacturer Dirty Dingo
Quantity:
  Add to Wish List

Description

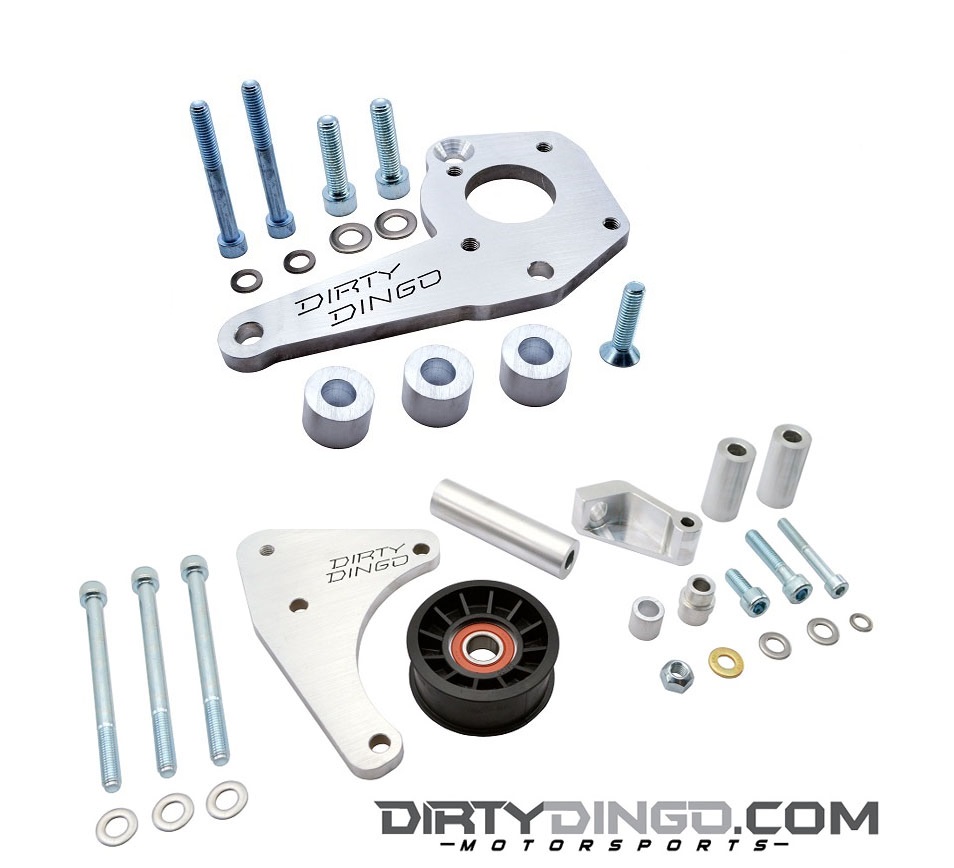

Billet 6061-T6 F car 1998-02 Camaro accessories that fits Camaro-GTO-Firebird accessory spacing. The alternator bracket comes with the additional idler pulley required. Uses 1998-02 Camaro power steering pump and reservoir in the factory position with F Car spacing. Designed to be used with 1998-02 Camaro alternator using the CNC machined 6061-T6 billet rear alternator brace. Double drilled to also fit Howe's high volume race pumps. Includes precision 6061-T6 billet CNC lathe cut spacers, grade 8 zinc coated allen bolts, and stainless steel washers. Will fit all Gen 3 and Gen 4 LS engines.



* Can be used with Vortec truck blocks by drilling the upper hole into the block. This should be drilled with a .339 drill bit 3/4" deep and tapped with a 10MMx1.5 tap. Truck accessories only use two bolts that mount through the alternator into the block and the billet rear brace must be used.

* Will not fit GTO or Corvette power steering pump or pulley.

* Designed to fit alternators from- 1998-2002 Camaro, Firebird, and 2004-06 GTO.

Images

LS Camaro Style Billet Power Steering Low Mount Alt Brackets
Click to enlarge
LS Camaro Style Billet Power Steering Low Mount Alt Brackets
Click to enlarge
LS Camaro Style Billet Power Steering Low Mount Alt Brackets
Click to enlarge
LS Camaro Style Billet Power Steering Low Mount Alt Brackets
Click to enlarge
