LT Truck Billet Alternator Power Steering Type 2 Pump Street Rod

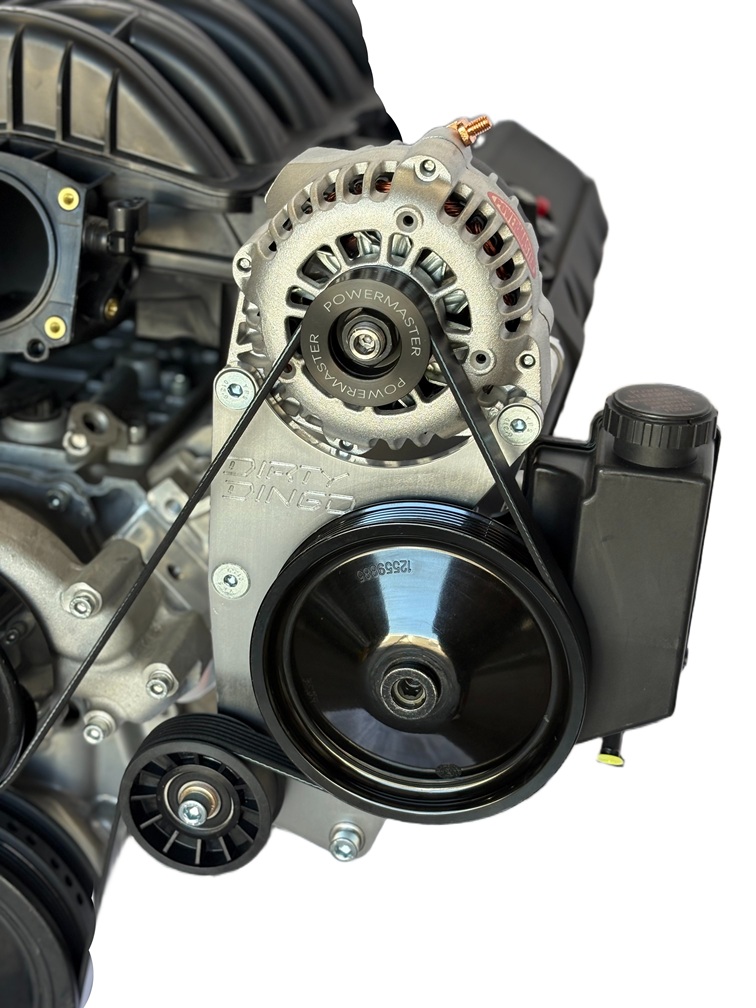

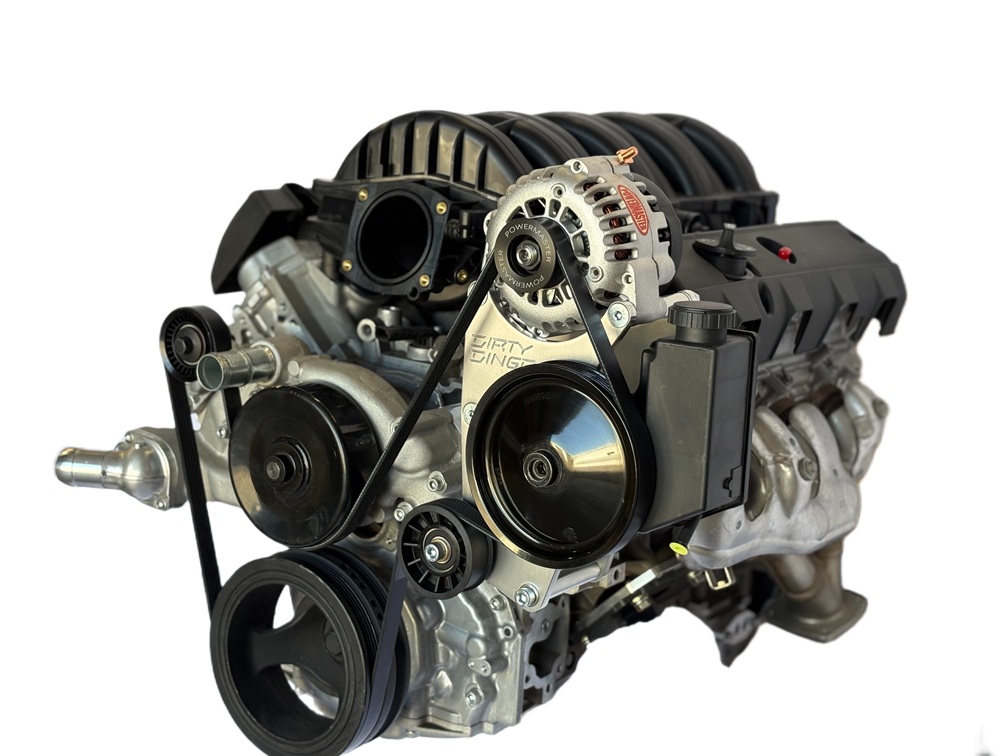

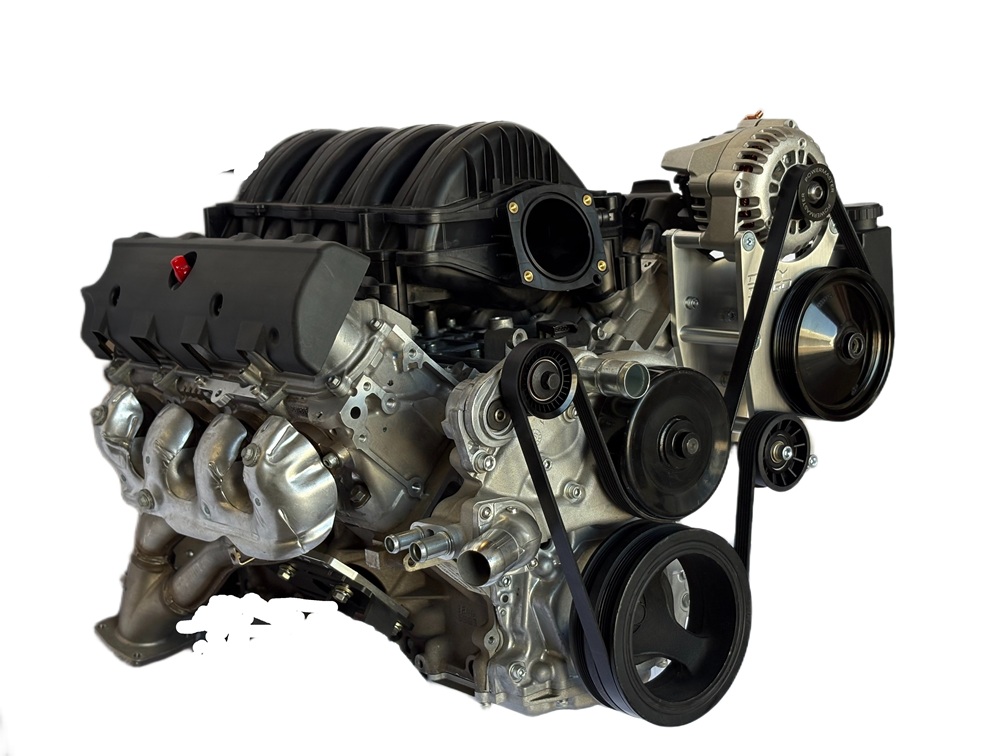

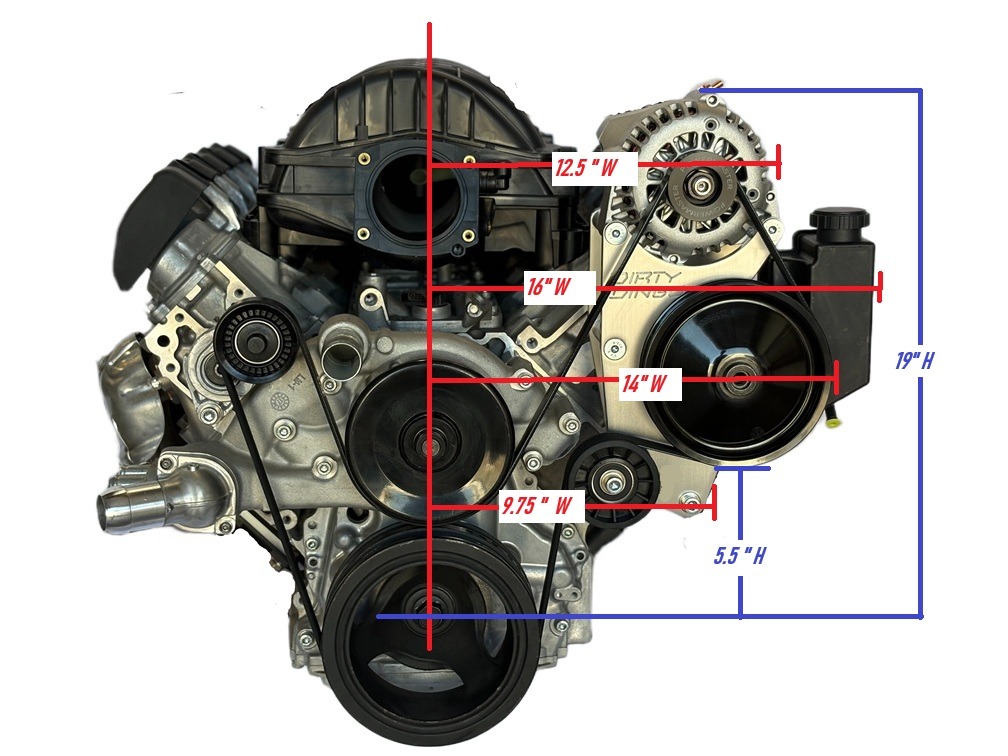

Dirty Dingo designed billet aluminum alternator/power steering bracket for your Gen V engines using a LT Truck spacing balancer. CNC machined from 1/2" thick 6061-T6 aircraft billet aluminum on a precision vertical CNC milling center. This bracket is completely machined on both sides to 3/8" thick. Designed to be used with Dirty Dingo LT water pump adapters and used with a Gen IV 2008 Corvette LS water pump. This bracket uses a type 2 power steering pump from 1998-2002 Camaro LS1. Can be used with DD-SR-PS-RES power steering reservoir or an external power steering pump reservoir with DD-LS-PS-F2 billet 90 degree fitting. Bracket is double drilled to mount all Gen III and Gen IV large and small case alternators. Uses standard size power steering pulley from 1998-02 Camaro LS1. Total width of bracket measured from the center of the engine to outside of the power steering reservoir is 15.75" wide.
INSTALLATION INSTRUCTIONS
* Will not work with dry sump engines.
* Must be used with DD-LT-WPA Dirty Dingo LT water pump adapters and a 2008 Gen IV Corvette water pump GM part number 89018052 and 2008 Corvette belt tensioner if not installing A/C.

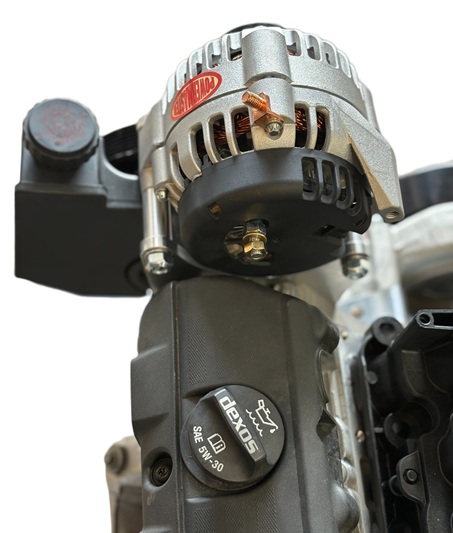

* Designed to fit all LS alternators from- 1998-2002 Camaro, 2000-2013 Truck LS Vortec truck large and small case, 2010-2015 Camaro, and LT truck alternators.
* Will not clear factory truck vacuum pump. Hydroboost or electric vacuum pump required.
* Designed to fit using Gen V Truck spacing harmonic balancer GM part number 12620312 or 12684590.

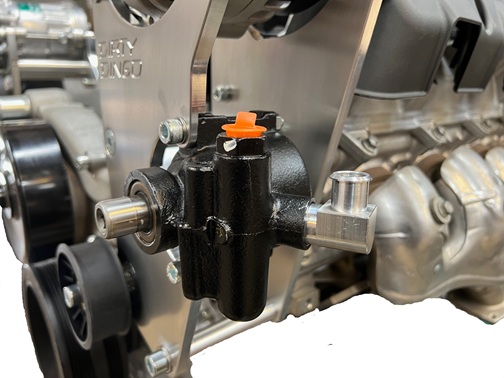

* Will need DD-SR-PS-RES or DD-LS-PS-F2 90 degree billet press in fitting is using external power steering reservoir.
* LT 2 pin plug alternator Duralast DL1912-6-11, AC Delco 20881337, ADR0373
|
