LT Truck Billet Alternator Power Steering Type 2 Pump Street Rod
Dirty Dingo designed billet aluminum alternator/power steering bracket for your Gen V engines using a LT Truck spacing balancer. CNC machined from 1/2" thick 6061-T6 aircraft billet aluminum on a precision vertical CNC milling center. This bracket is completely machined on both sides to 3/8" thick. Designed to be used with Dirty Dingo LT water pump adapters and used with a Gen IV 2008 Corvette LS water pump. This bracket uses a type 2 power steering pump from 1998-2002 Camaro LS1. Can be used with DD-SR-PS-RES power steering reservoir or an external power steering pump reservoir with DD-LS-PS-F2 billet 90 degree fitting. Bracket is double drilled to mount all Gen III and Gen IV large and small case alternators. Uses standard size power steering pulley from 1998-02 Camaro LS1. Total width of bracket measured from the center of the engine to outside of the power steering reservoir is 15.75" wide.
INSTALLATION INSTRUCTIONS

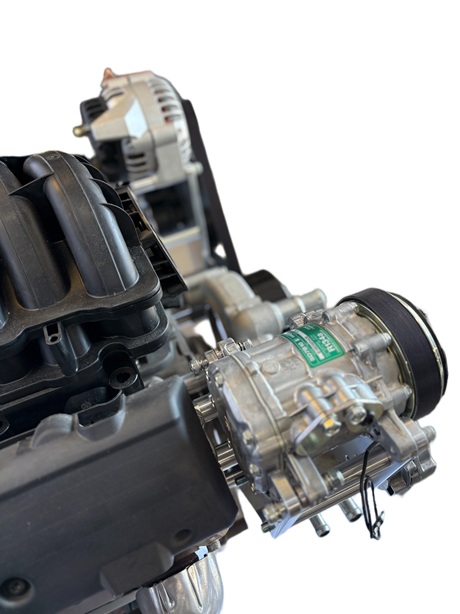

LT Truck Billet AC SD7B10 Compressor Street Rod

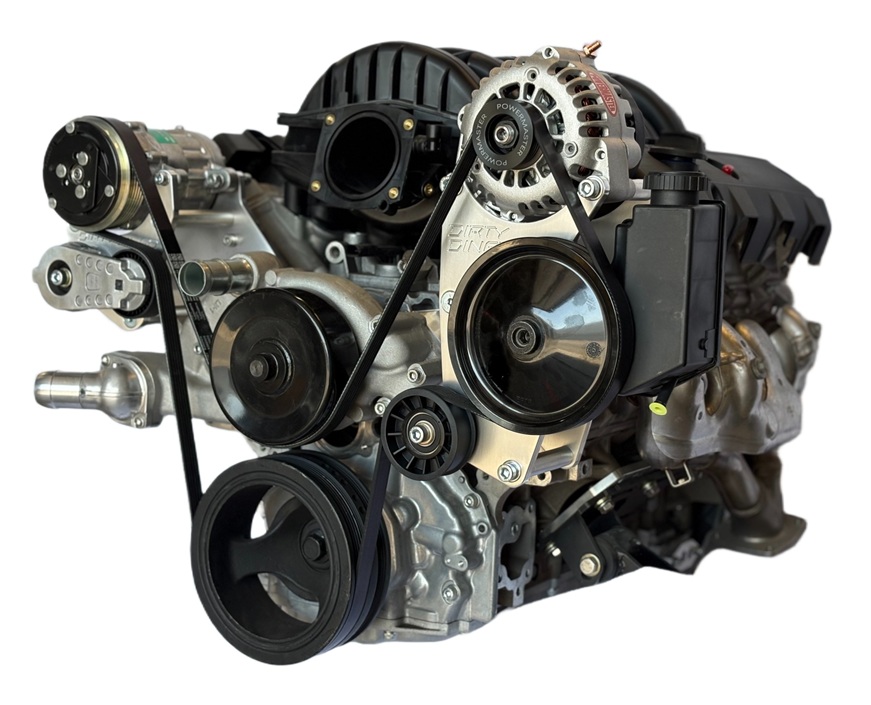

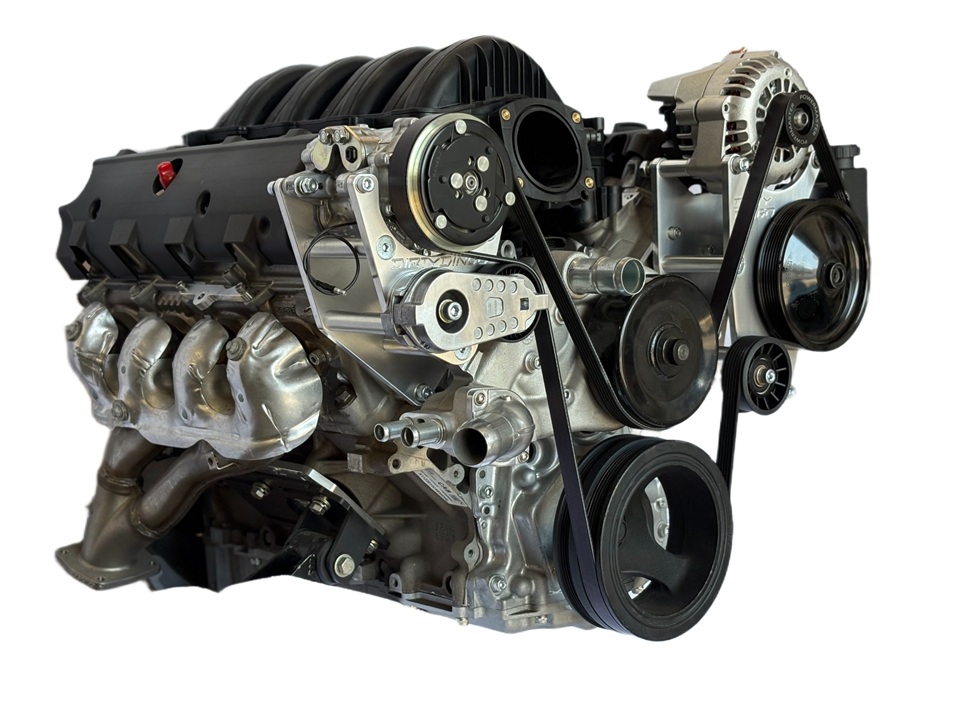

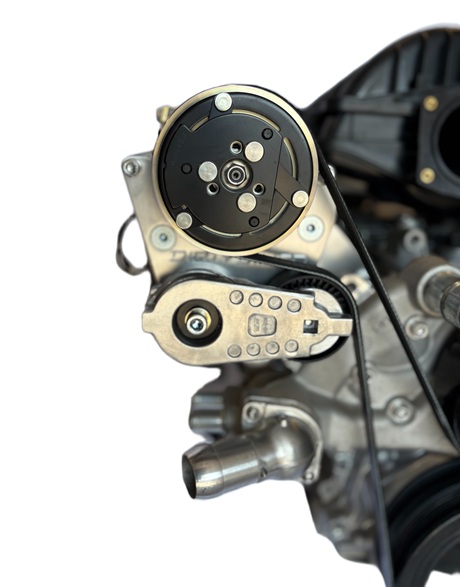

Dirty Dingo designed billet aluminum Street Rod AC bracket for your Gen V engines using a LT Truck spacing balancer. Shown with our LT Truck Billet Alternator Power Steering Type 2 Pump Street Rod series billet bracket DD-LT-ALT-PS-2-SR. This is for the AC bracket kit only. CNC machined from 1/2" thick 6061-T6 aircraft billet aluminum on a precision vertical CNC milling center. This bracket is completely machined on both sides to 3/8" thick. Designed to be used with Dirty Dingo LT water pump adapters and used with a Gen IV 2008 Corvette LS water pump. This bracket uses an aftermarket Sanden SD7B10 AC compressor. Tensioner and idler pulley included. Grade 8 zinc coated allen bolts, stainless washers, and CNC machined 6061-T6 billet CNC machnined spacers. Total width of bracket measured from the center of the engine to outside of the ac compressor is 13" wide.
INSTALLATION INSTRUCTIONS
* Will not work with dry sump engines.
* Can be used with DD-SD7B10 billet AC fitting.
* Must be used with DD-LT-WPA Dirty Dingo LT water pump adapters and a 2008 Gen IV Corvette water pump GM part number 89018052 and 2008 Corvette belt tensioner if not installing A/C.
* Designed to fit all LS alternators from- 1998-2002 Camaro, 2000-2013 Truck LS Vortec truck large and small case, 2010-2015 Camaro, and LT truck alternators.
* Will not clear factory truck vacuum pump. Hydroboost or electric vacuum pump required.
* Designed to fit using Gen V Truck spacing harmonic balancer GM part number 12620312 or 12684590.
* Will need DD-SR-PS-RES or DD-LS-PS-F2 90 degree billet press in fitting is using external power steering reservoir.
* LT 2 pin plug alternator Duralast DL1912-6-11, AC Delco 20881337, ADR0373
|
