Holley 302-2 LS Engine Swap Retrofit Oil Pan

Holley 302-2 LS Engine Swap Retrofit Oil Pan
Click to enlarge
Price $435.95
Model DD-LS-H-OP2
Manufacturer Dirty Dingo
Quantity:   Out of Stock
  Add to Wish List

Description

This item is an oversized item and shipping charges will apply.

This Holley 302-2 Oil Pan fits a wide variety of GM Muscle Cars. Fits all LS Gen III and GEN IV engines. It offers OEM fitment and quality and does not require the use of a remote filter. Kit comes with everything you see above.

  • Includes:
  • Sump Baffle
  • Pickup Tube
  • Sump Plug
  • Oil Filter Stud
  • Oil Passage Cover
Features
  • Designed for LS engine retrofit installations in GM muscle/classic car and truck chassis requiring more oil pan to chassis clearance around the front half of the oil pan.
  • NOTE – Oil pan #302-2 may not be used with LS7 dry sump engines or “stroker” engines greater than 3.62”.
  • Provides OEM fitment - OEM oil filter mounting, OEM oil cooler port provision, OEM engine NVH suppression, OEM flange gasket and sealing, proper structural rigidity and OEM bell-housing attachments.
  • Traditional high-quality cast aluminum appearance with clean exterior styling.
  • Provides maximum clearance for vehicles where the steering linkage is behind the engine crossmember.
  • Cast and machined aluminum
  • Complete kit includes sump baffle, OE style pick-up tube, sump plug, oil filter stud, oil passage cover, etc.

Sump Oil Capacity – 5.7 Quarts
Total Oil Capacity with stock oil filter – 6.2 Quarts
Requires use of LS3 dipstick (GM P/N 12669528) and tube (GM P/N 12625031)
302-2 is designed to use a GM “F-body” windage tray, GM P/N 12558253. A modification to the windage tray is required to provide clearance to the pick-up tube. A full-length windage tray may be used if the front quarter of the tray is removed. See the instruction sheets showing the windage tray modifications required.






ATTENTION! Additional Parts Needed

* Requires use of Holley 302-15 Dipstick and Tube Kit or LS3 Corvette dipstick (GM P/N 12669528) and tube (GM P/N 12625031).

* Designed to use a GM F-body windage tray, GM part number 12558253. A modification to the windage tray is required to provide clearance to the pick-up tube. A full-length windage tray may be used if the front quarter of the tray is removed.

* Oil Pan Gasket 6665G or GM® 12612350, High Quality RTV sealer, Oil Filter -AC Delco® PF48 AC Delco® PF48 or PF48E, Mobile M1-113, Wix 57060, K&N HP-1017, or equivalent


Images

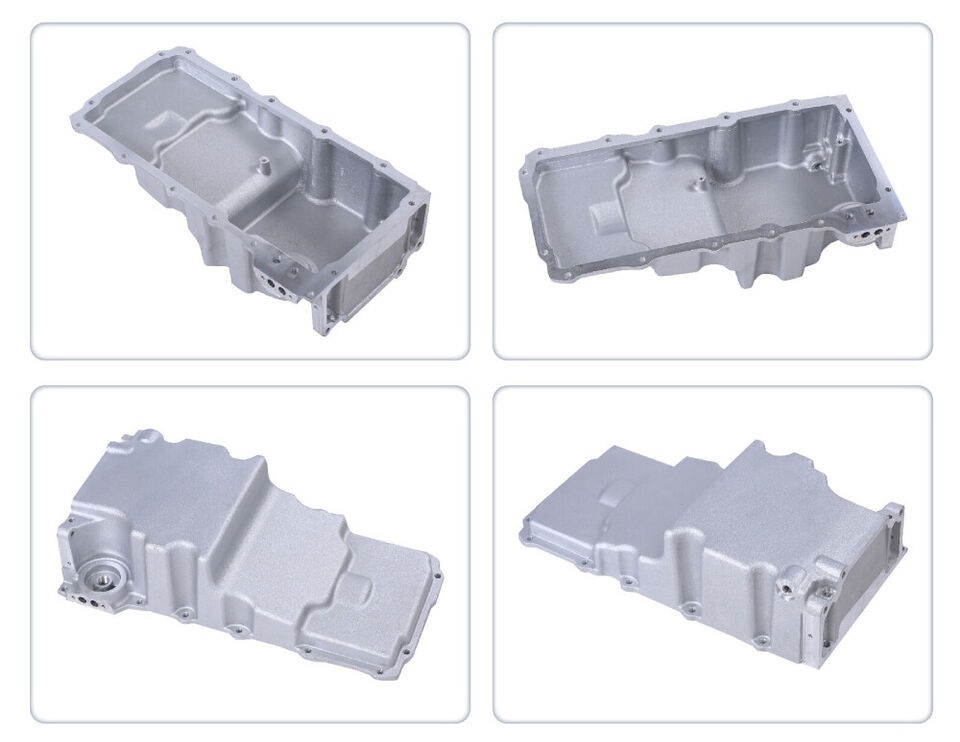

Holley 302-2 LS Engine Swap Retrofit Oil Pan
Click to enlarge

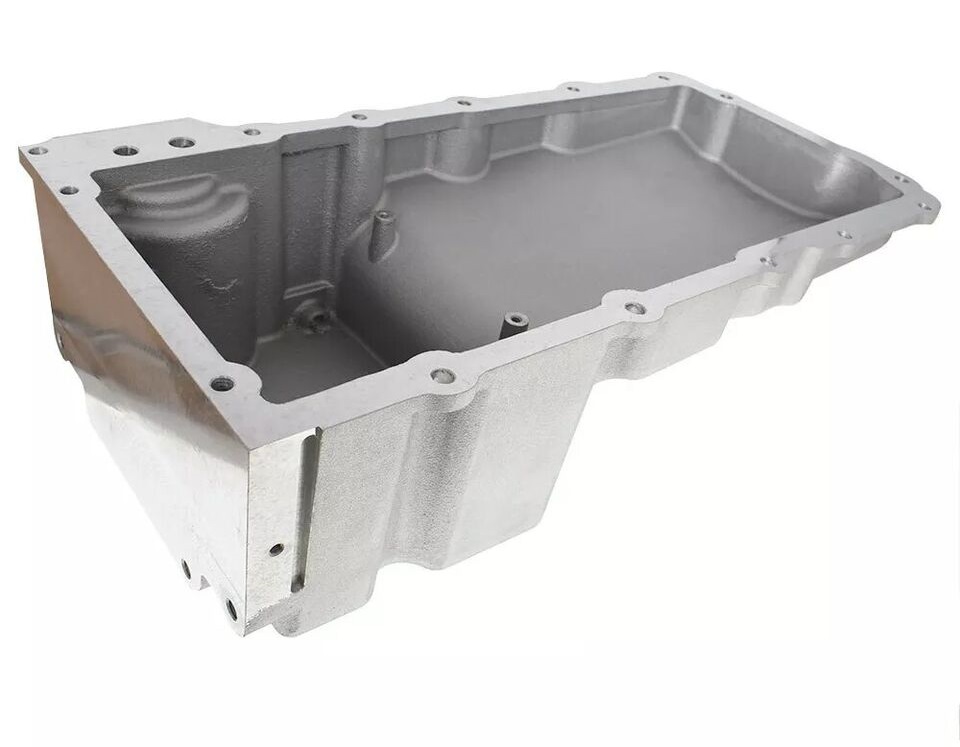

Holley 302-2 LS Engine Swap Retrofit Oil Pan
Click to enlarge

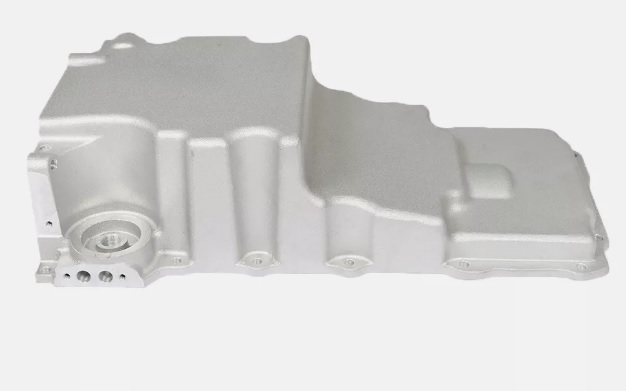

Holley 302-2 LS Engine Swap Retrofit Oil Pan
Click to enlarge

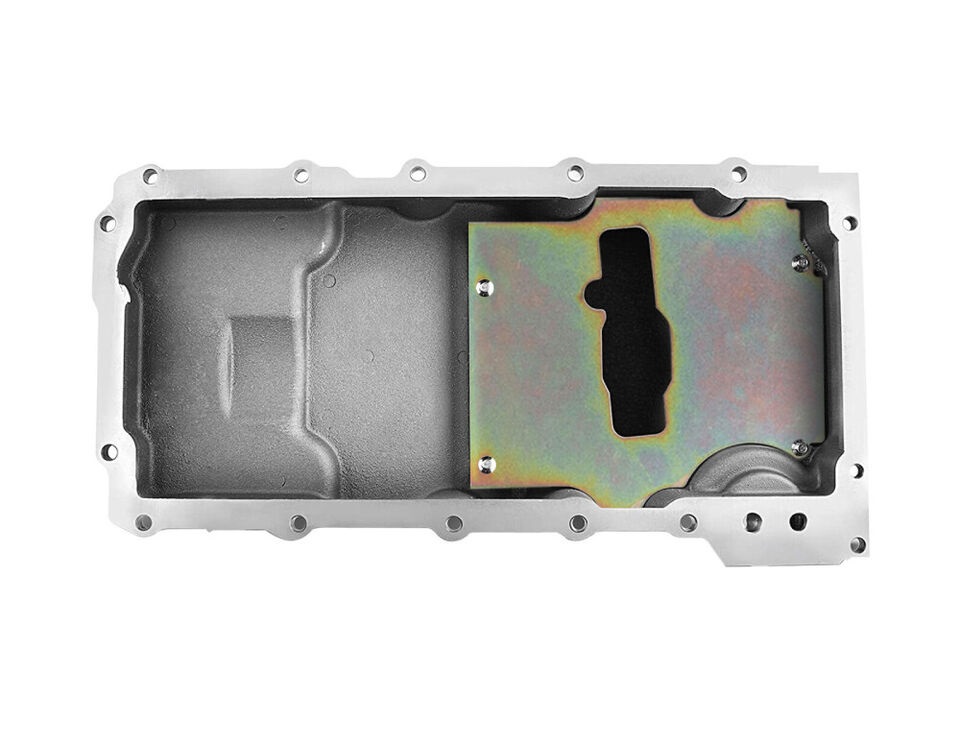

Holley 302-2 LS Engine Swap Retrofit Oil Pan
Click to enlarge
