Dirty Dingo “Ford Upgrade” Mustang LS Swap Mounts

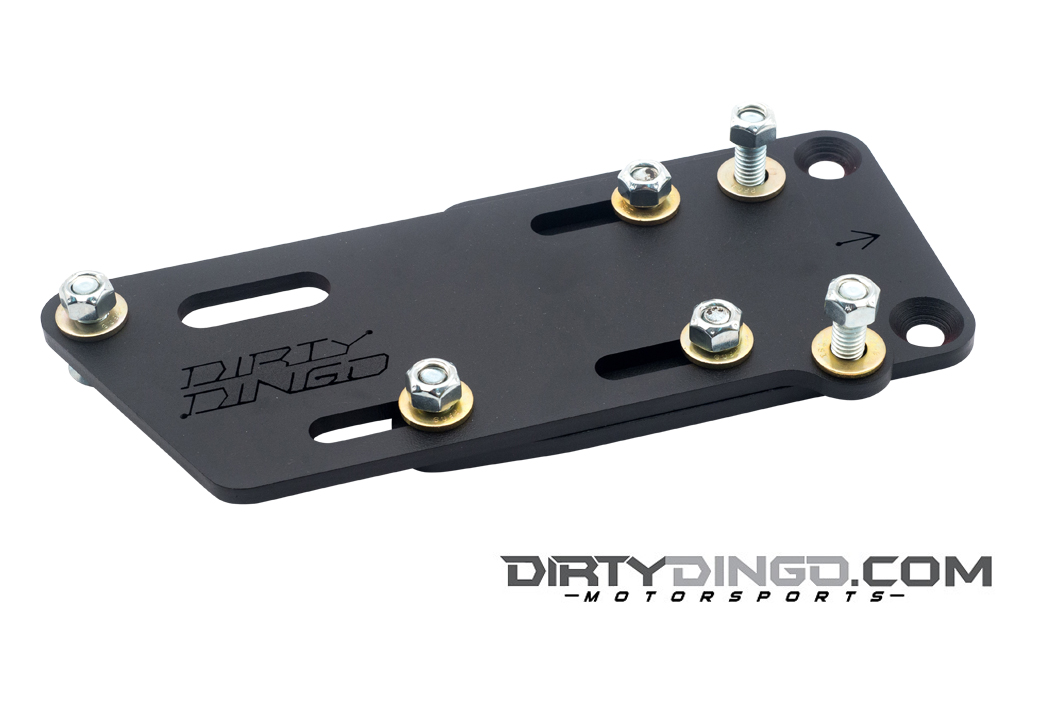

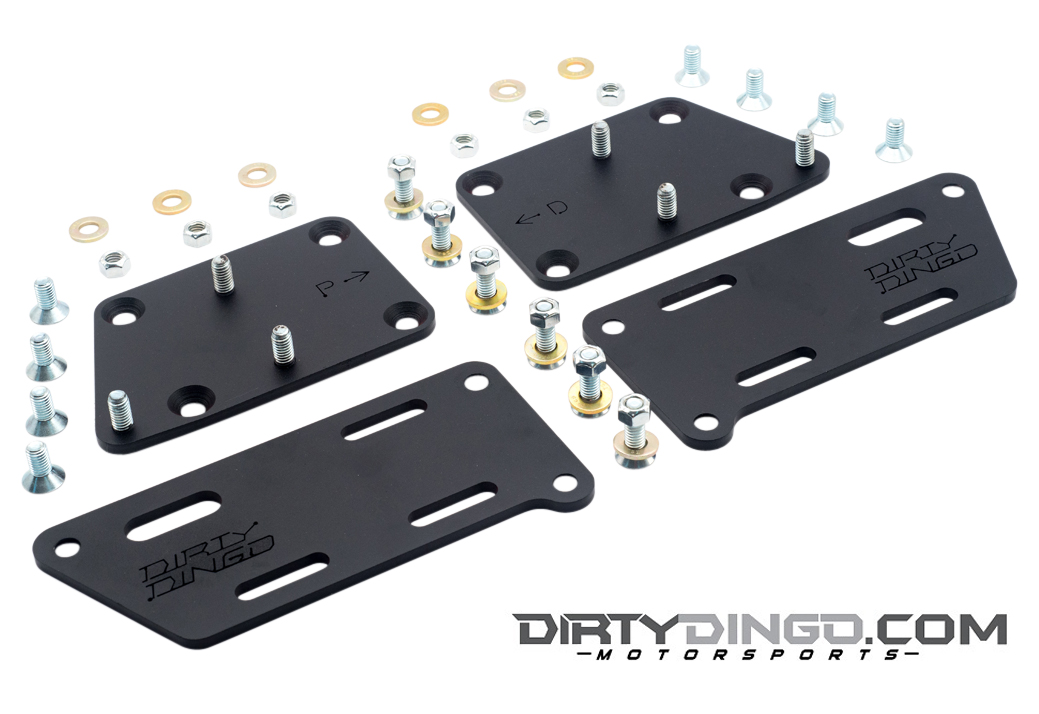

Dirty Dingo Motorsports “Ford Upgrade” engine mounts are designed to install a 1997–2013 GM Gen III or Gen IV LS engine into a 1996–2004 Ford Mustang.
These patented conversion mounts provide up to 2 inches of engine adjustment. The engine can be moved 1 inch forward or 1 inch rearward from the standard position. This makes it easier to find the best fit for your engine, transmission, and accessories.
The mounts work with any 4.6L Ford-style engine mount made for a 1996–2004 Mustang. You can use factory rubber mounts, aftermarket polyurethane mounts, or solid engine mounts.
Each conversion mount is precision CNC water-jet cut from strong 1/4-inch steel plate. Grade 8 installation hardware is included.
These mounts allow you to use an LS truck oil pan, but the pan will hang below the K-member. For better ground clearance, we recommend using a rear-sump F-body Camaro oil pan.
The Ford engine mounts shown in the pictures are not included.
Important Fitment Information
-
Mounts are sold as raw, unpainted steel.
-
Black textured powder coating is available.
-
These mounts will not fit Dart aftermarket engine blocks.
-
They will clear a low-mounted A/C compressor, but the engine cannot be moved rearward because the mounts will contact the A/C compressor bracket.
-
These mounts will clear low-mounted alternators.
INSTALLATION INSTRUCTIONS
|
