Dirty Dingo 4WD S10 LS Conversion Mount Kit
This complete mount kit is designed for installing a 1997–2013 Gen III or Gen IV LS engine into 1982–2004 4WD Chevrolet and GMC S10 trucks and mini Blazers.
The patented adjustable mounts are CNC laser-cut from 1/4-inch-thick 1050 high-carbon, cold-rolled steel. The slotted design provides up to 1 1/2 inches of adjustment to help place the engine correctly inside the engine bay.
Each mount is formed with a precision CNC press brake and a large-radius die. This process helps reduce stress at the bends and creates a strong, reliable mount.
The complete kit includes the clamshell frame mounts and all required Grade 8 zinc-coated hardware. New frame-mount bolts and engine-mount cross bolts are also included.
Important Fitment Information
-
Fits 1982–2004 4WD Chevrolet and GMC S10 trucks and mini Blazers
-
Fits GMC Syclone and Typhoon models
-
Will not fit ZR2 chassis trucks
-

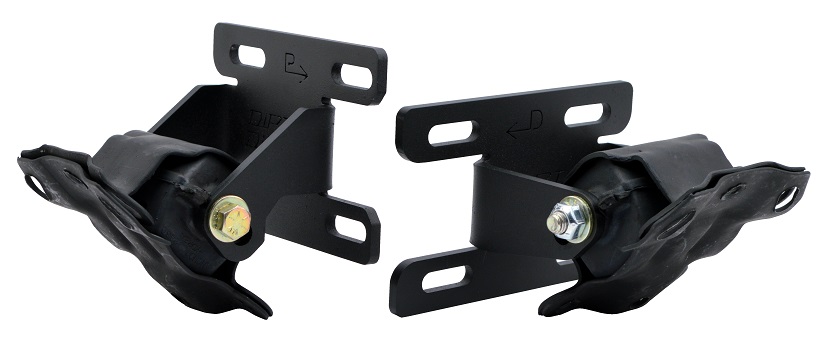

Sold as a driver-side and passenger-side pair
-

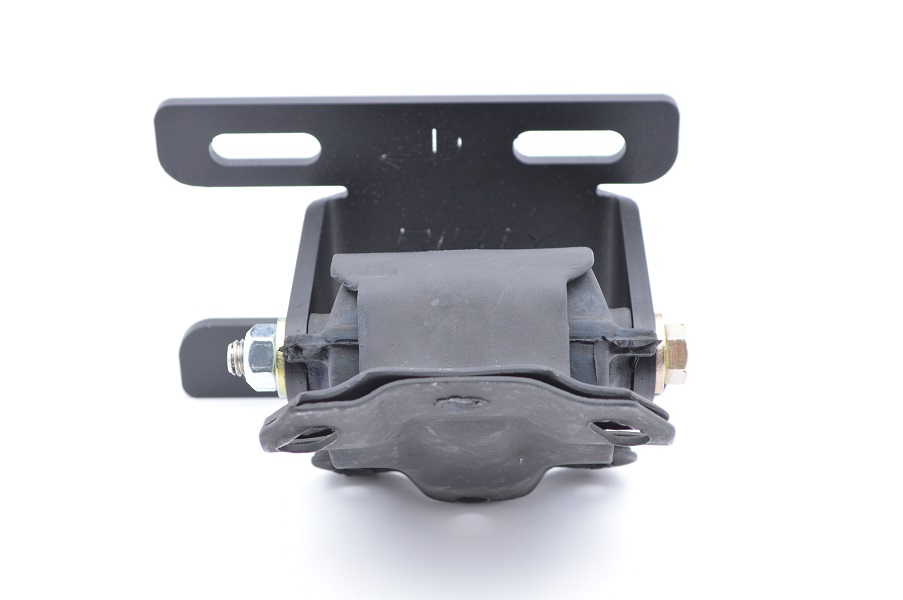

“D” marks the driver-side mount
-

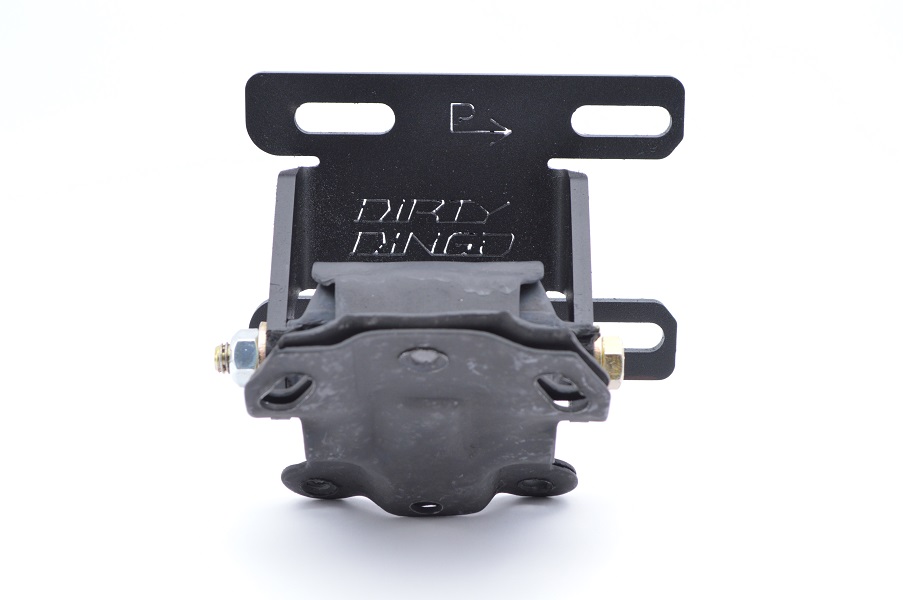

“P” marks the passenger-side mount
-
Engine-side mounts come in raw, unpainted steel
-
Black textured powder coating is available
-
Clamshell frame mounts are painted black
-
Will not fit Dart aftermarket engine blocks
-
Low-mount alternators will not clear the factory S10 steering box
-
Works with S10 LS conversion headers
Oil Pan Fitment
These mounts work with the Milodon 31083 S10 4X4 oil pan.
The following Milodon parts are also required:
-
18291 oil-pump pickup tube
-
21575 LS and Gen III oil-filter relocation kit
-
85002 oil-pan bolt kit
|
