LS Street Rod Billet AC Bracket for SD7B10

LS Street Rod Billet AC Bracket for SD7B10
Click to enlarge
Price $289.99
Model DD-LS-AC-SR
Manufacturer Dirty Dingo
Quantity:
  Add to Wish List

Description

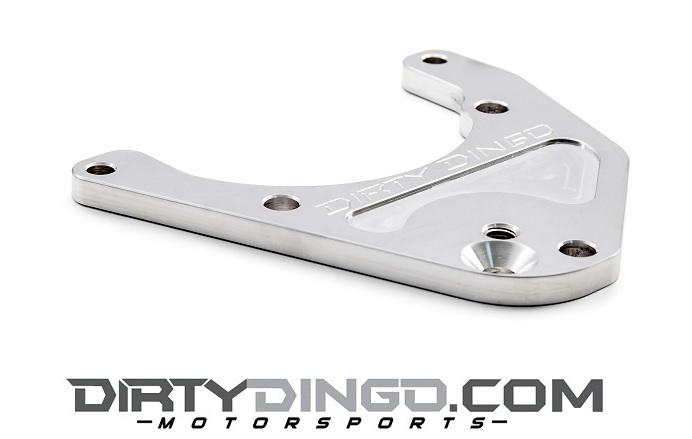

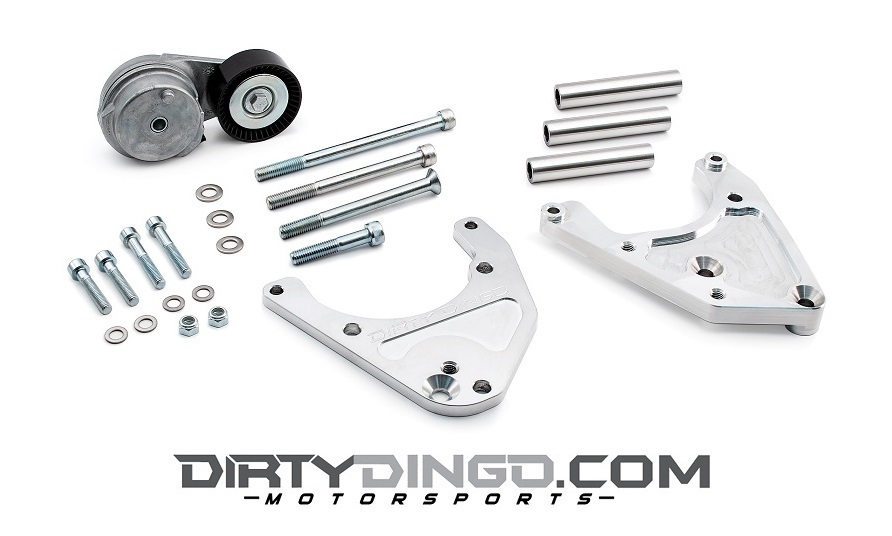

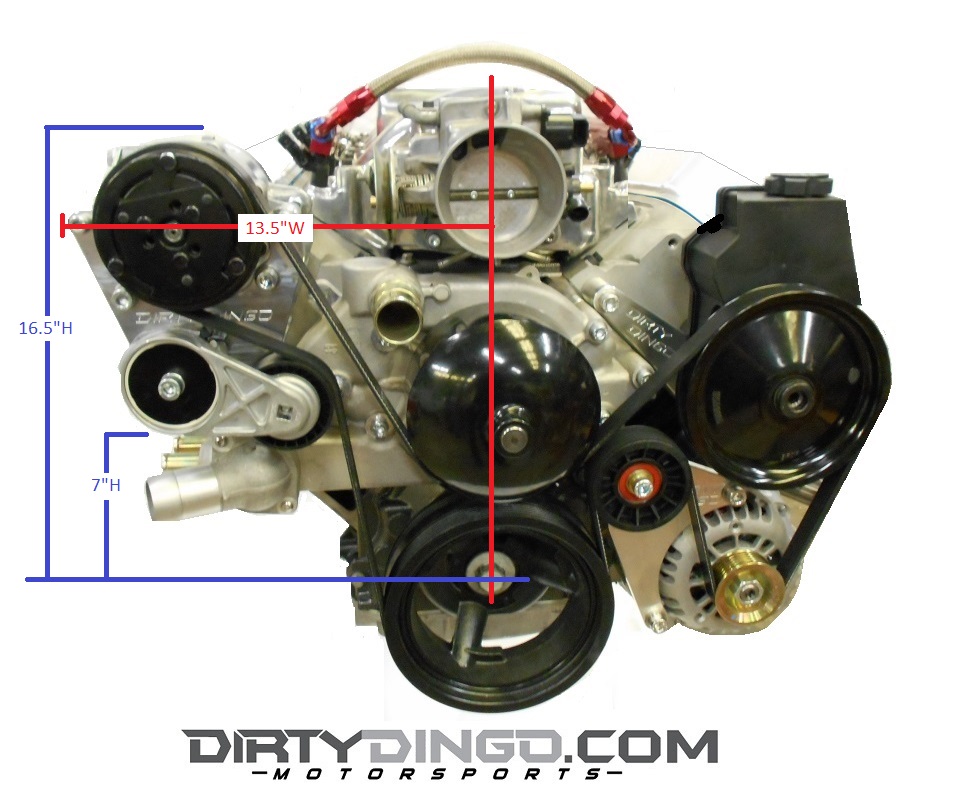

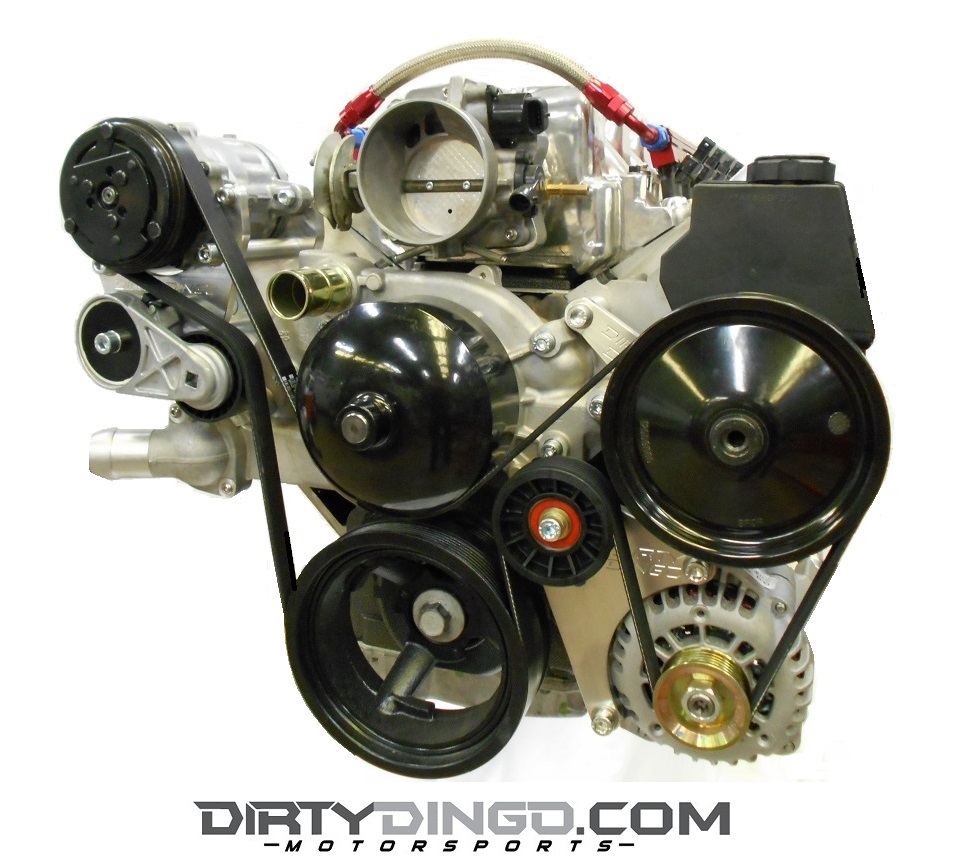

Designed for LS Gen 3 and Gen 4 Vortec Truck, 2010-2015 Camaro, and VVT spacing in street rod applications. Places a mini Sanden SD7B10 AC compressor in front of the passenger cylinder head. CNC machined from 1 1/2" thick 6061-T6 aircraft billet aluminum on a precision vertical CNC milling center. Places the AC compressor below the height of an LS1 car style intake manifold and no wider than the exhaust on the cylinder head. Tucks the compressor in close to the block for narrow engine bays. New mini ultra strong flat spring tensioner. Includes all necessary grade 8 zinc coated hardware.

Installation Instructions

Images

LS Street Rod Billet AC Bracket for SD7B10
Click to enlarge
LS Street Rod Billet AC Bracket for SD7B10
Click to enlarge
LS Street Rod Billet AC Bracket for SD7B10
Click to enlarge
LS Street Rod Billet AC Bracket for SD7B10
Click to enlarge
